CFI Achromat Series for Phase Contrast

Excellent phase contrast imaging at an exceptional price.

CFI Achromat Series objectives for phase contrast microscopy. Correction for chromatic aberration in this series has been dramatically improved and is now at the same level as the CFI Plan Achromat Series. Images are crisp and clear across 22mm field of view. These microscope objectives provide excellent phase contrast imaging at an exceptional price.

Download Objectives Brochure (8.73MB)


Specifications

Model Dimensions Transmittance NA W.D.
(mm)
Cover glass thickness Correction ring Observation

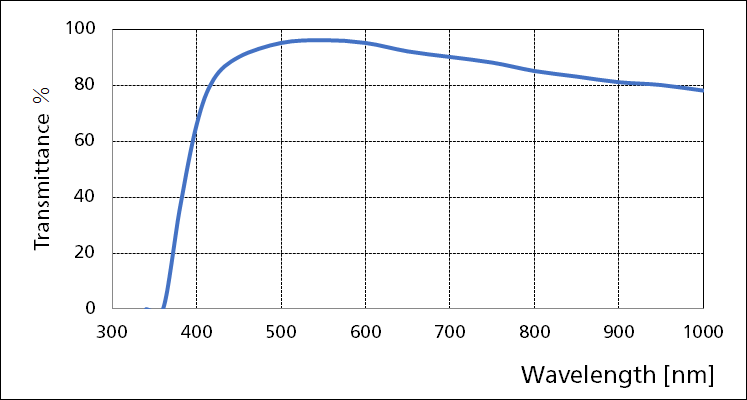

CFI Achromat DL 10X Diagram Graph 0.25 7.00 BF, DF (Dry), PH, POL*, FL (visible light*)
CFI Achromat LWD DL 20X Diagram Graph 0.40 3.90 0.17 BF, DF (Dry/Oil), PH, POL*, FL (visible light*)

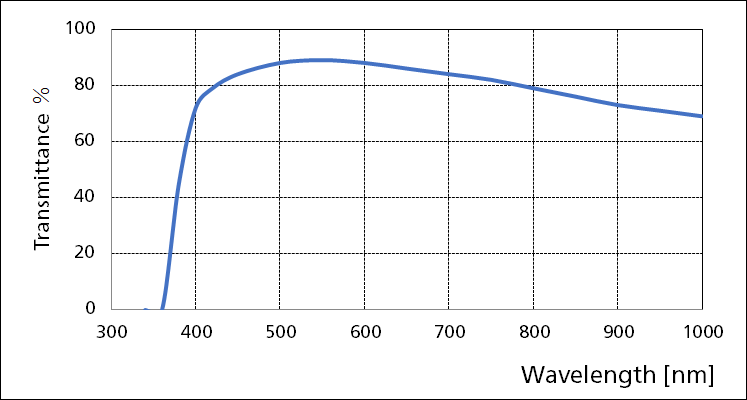

CFI Achromat LWD DL 20XF Diagram Graph 0.40 3.10 1.20 BF, PH, POL*, FL (visible light*)

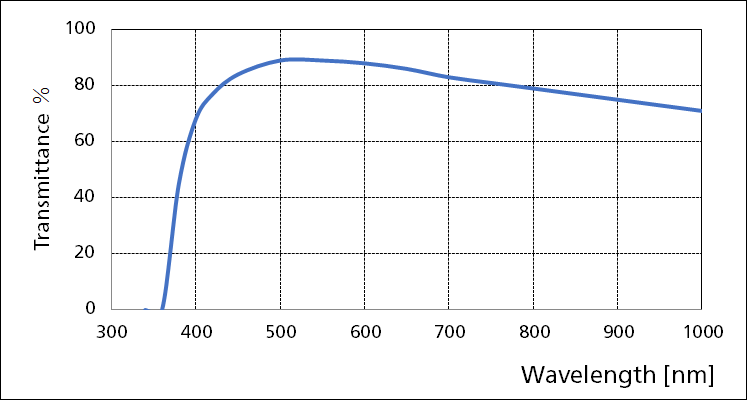

CFI Achromat DL 40X Diagram Graph 0.65 0.65 0.17 BF, DF (Dry/Oil), PH, POL*, FL (visible light*)

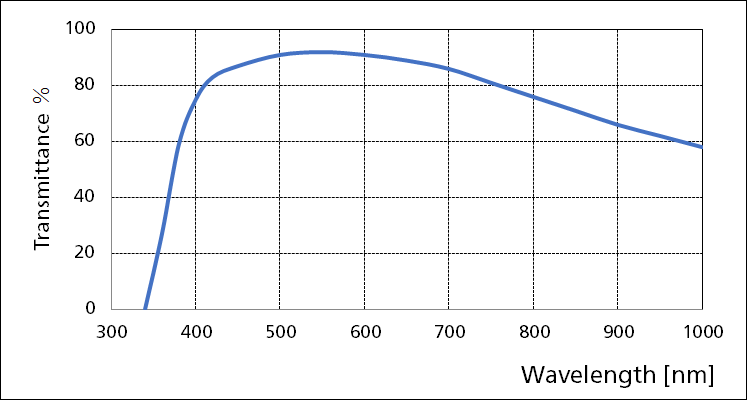

CFI Achromat LWD DL 40XC Diagram Graph 0.55 2.70-1.70 0-2.00 BF, DF (Dry/Oil), PH, POL*, FL (visible light*)

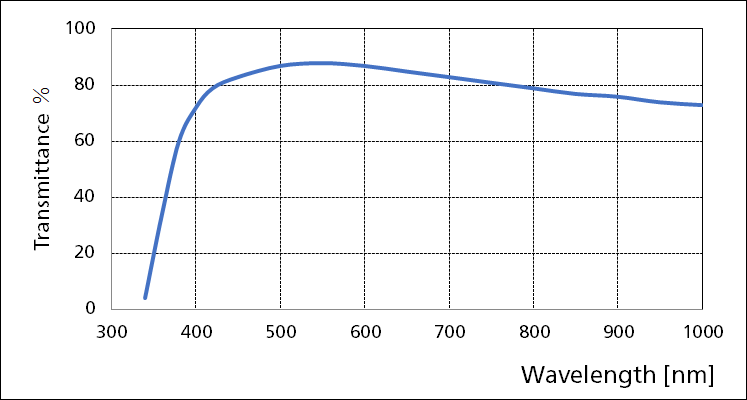

CFI Achromat DL 100X Oil Diagram Graph 1.25 0.23 0.17 BF, PH, POL*, FL (visible light*)

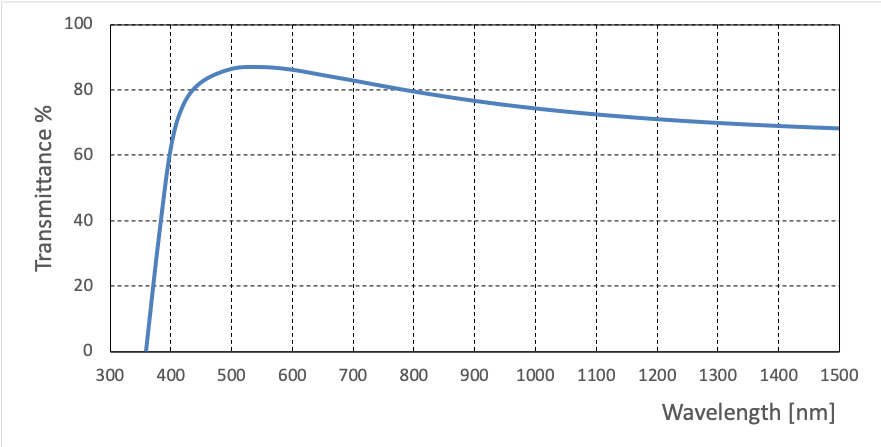

CFI Achromat BM 10X Diagram Graph 0.25 7.00 0.17 BF, POL*, FL (visible light*)

BF: Brightfield
DF: Darkfield
PH: Phase contrast
POL: Simple polarizing
FL: Fluorescence

*Possible but not recommended

**External phase contrast observation is possible with Eclipse Ti2-E
