CFI Achromat Series

A microscope objective with dramatically improved chromatic aberration correction.

CFI Achromat Series objective lenses. Correction for chromatic aberration in this series has been dramatically improved and is now at the same level as the CFI Plan Achromat Series. These CFI Achromat objectives are also corrected for spherical and chromatic aberration. Additionally,  image flatness across the 22mm field of view has been drastically improved. The result: truly exceptional quality for this class of objectives.

Download Objectives Concept Brochure (15.32MB)


Specifications

ModelDimensionsTransmittanceNAW.D.
(mm)
Cover glass thicknessCorrection ringObservation

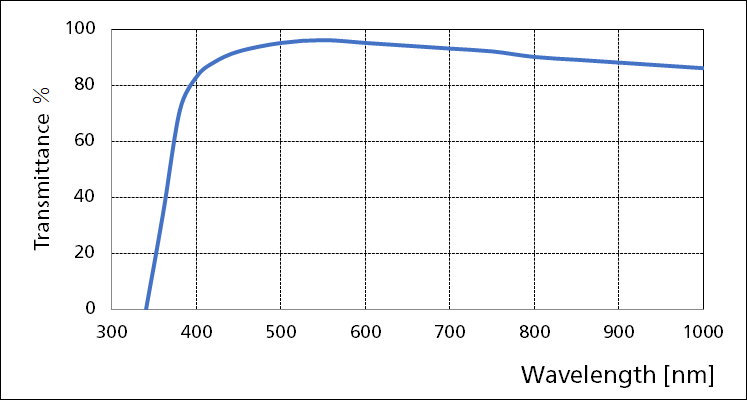

CFI Achromat 4XDiagramGraph0.1030.00BF, POL*, FL (visible light)

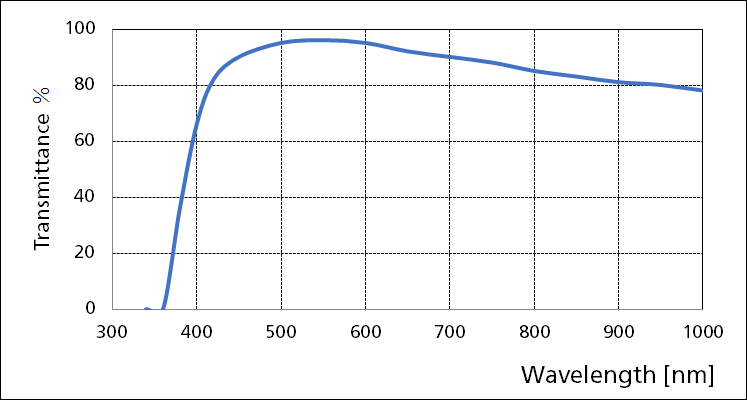

CFI Achromat 10XDiagramGraph0.257.00BF, DF (Dry), POL*, FL (visible light)

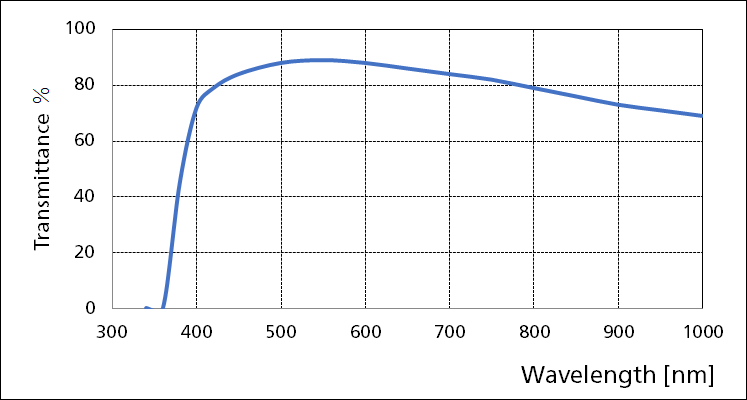

CFI Achromat LWD 20XDiagramGraph0.403.900.17BF, DF (Dry/Oil), POL*, FL (visible light)

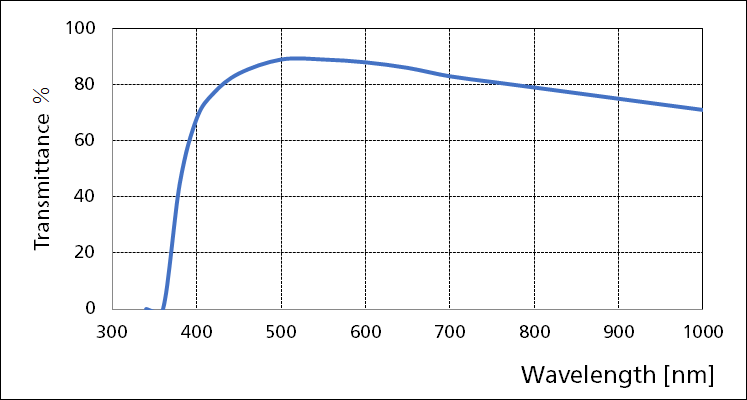

CFI Achromat 40XDiagramGraph0.650.650.17BF, DF (Dry/Oil), POL*, FL (visible light)

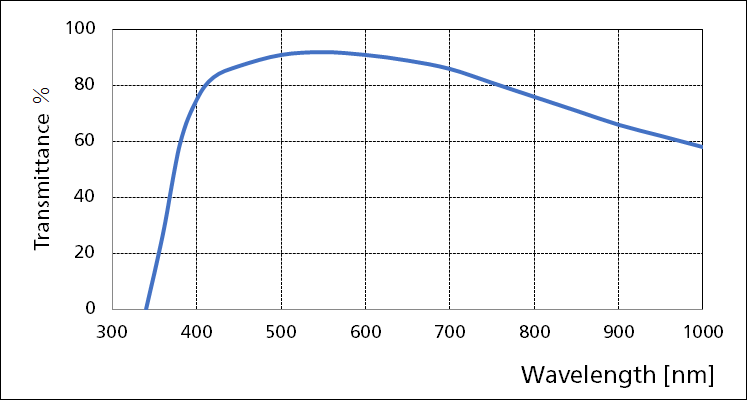

CFI Achromat LWD 40XCDiagramGraph0.552.7-1.70-2.00BF, DF (Dry/Oil), POL*, FL (visible light)

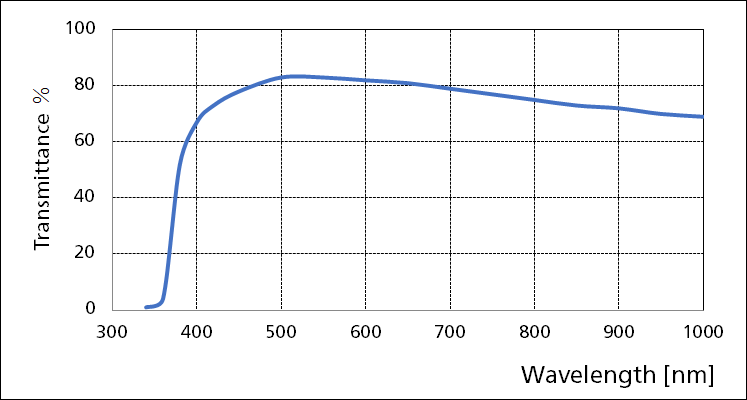

CFI Achromat 60XDiagramGraph0.800.300.17BF, DF (Oil), POL*, FL (visible light)

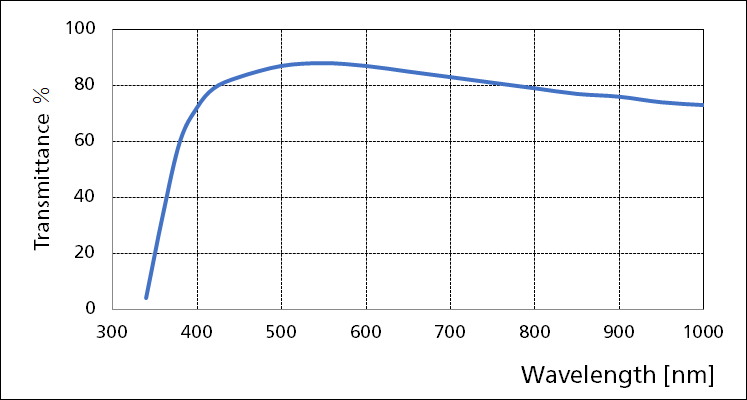

CFI Achromat 100X OilDiagramGraph1.250.230.17BF, POL*, FL (visible light)
CFI Achromat 100XS OilDiagramGraph0.50-1.250.230.17BF, DF (Dry/Oil), POL*, FL (visible light)

BF: Brightfield
DF: Darkfield
PH: Phase contrast
POL: Simple polarizing
FL: Fluorescence

*Possible but not recommended

**External phase contrast observation is possible with Eclipse Ti2-E
