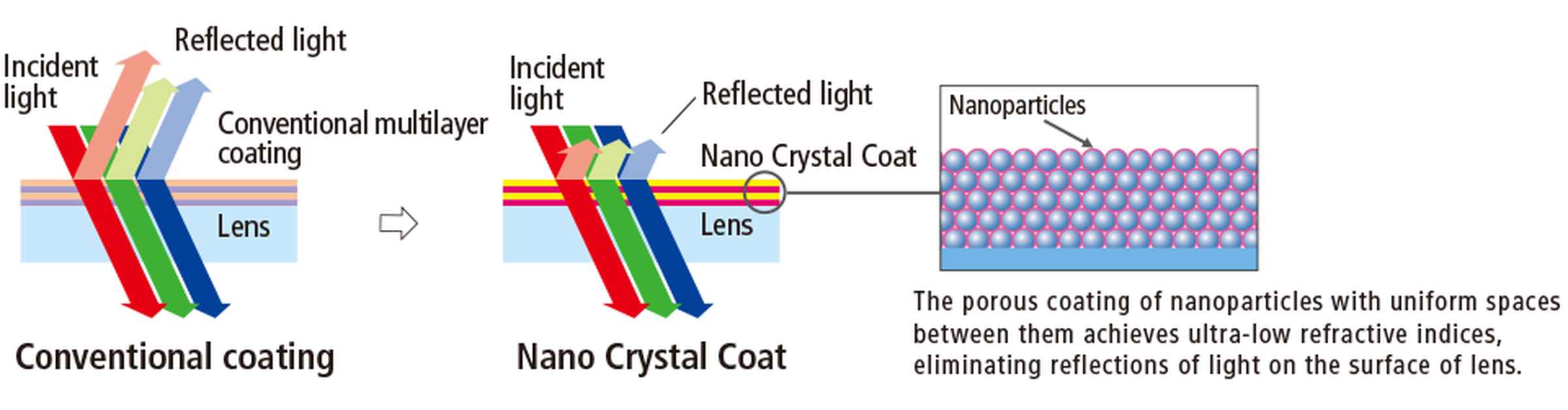

Nano Crystal Coat guarantees optimum brightness.

Nikon's exclusive ultra-low refractive index coating technology "Nano Crystal Coat," used in the manufacture of professional SLR camera lenses, is now employed in the new CFI Plan Apochromat Lambda objective series. This technology enables remarkably high transmission throughout a broad range of wavelengths, from UV to the near-IR region. Offering bright, sharp, high-contrast images, these objectives are perfect for multi-color fluorescence live-cell imaging, particularly for fluorescent dyes with longer wavelengths that are less phototoxic to living specimens. Moreover, with the world's highest level of chromatic aberration correction, resolution and image flatness, the capture of high-quality brightfield images is ensured.   Capable of visualizing the minute structures and dynamics of living cells or organisms, the CFI Plan Apochromat Lambda series supports bioscience research in its quest to reveal the mechanisms of life.

Download Objectives Brochure (8.68MB)

Download Objectives Concept Brochure (14MB)


Specifications

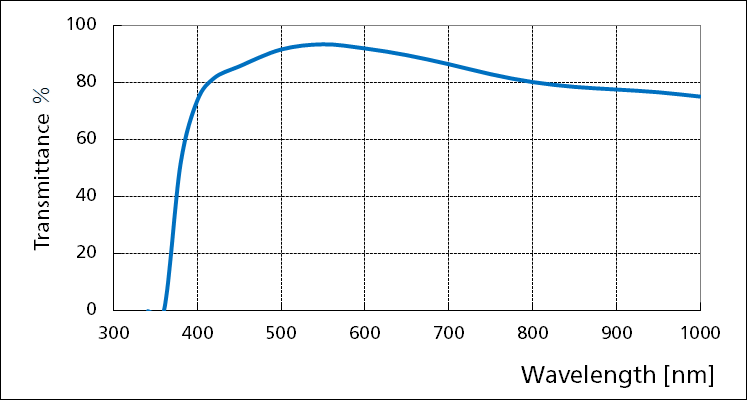

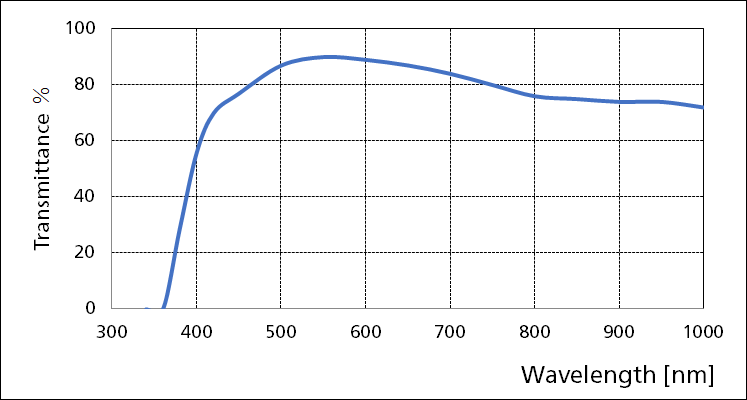

ModelDimensionsTransmittanceNAW.D.
(mm)
Cover glass thicknessCorrection ringObservation
CFI Plan Apochromat Lambda 2XDiagramGraph0.108.50BF, POL, FL (visible light, UV*, NIR)
CFI Plan Apochromat Lambda 4XDiagramGraph0.2020.00BF, POL, FL (visible light, UV*, NIR)
CFI Plan Apochromat Lambda 10XDiagramGraph0.454.000.17BF, DF (Dry), DIC, POL, FL (visible light, UV*, NIR)
CFI Plan Apochromat Lambda 20XDiagramGraph0.751.000.17BF, DF (Dry/Oil), DIC, POL, FL (visible light, UV*, NIR)
CFI Plan Apochromat Lambda 40XCDiagramGraph0.950.21 (0.25-0.16)0.11-0.23BF, DF (Oil), DIC, POL, FL (visible light, UV*, NIR)
CFI Plan Apochromat Lambda 60XCDiagramGraph0.950.15 (0.21-0.11)0.11-0.23BF, DF (Oil), DIC, POL, FL (visible light, UV*, NIR)
CFI Plan Apochromat Lambda 60X OilDiagramGraph1.400.130.17BF, DIC, PH**, POL, FL (visible light, UV*, NIR)
CFI Plan Apochromat Lambda 100X OilDiagramGraph1.450.130.17BF, DIC, PH**, POL, FL (visible light, UV*, NIR)

BF: Brightfield
DF: Darkfield
PH: Phase contrast
POL: Simple polarizing
FL: Fluorescence

*Possible but not recommended

**External phase contrast observation is possible with Eclipse Ti2-E
