CFI Apochromat Lambda S Objective Series

Microscope objectives optimized for live cell and confocal imaging.

Lambda S Objectives employ Nikon’s unique Nano Crystal Coat technology, an antireflective coating that virtually eliminates internal lens element reflections across a wide range of wavelengths. It is particularly effective in reducing stray light reflections and flare in high angle (large NA) lenses, enabling very high transmission rates over a broad range of wavelengths extending from the ultraviolet to the infrared. Nikon’s exclusive Nano Crystal Coat employs multiple layers of extra-low refractive index coating, which features ultra-fine crystallized particles of nanometer size. This technology was developed for Nikon’s world-famous photolithography semiconductor manufacturing products and is now available for advancing the performance of microscope objectives.

Download Objectives Brochure (8.78MB)


Model Dimensions Transmittance NA W.D.
Cover glass thickness Correction ring Observation

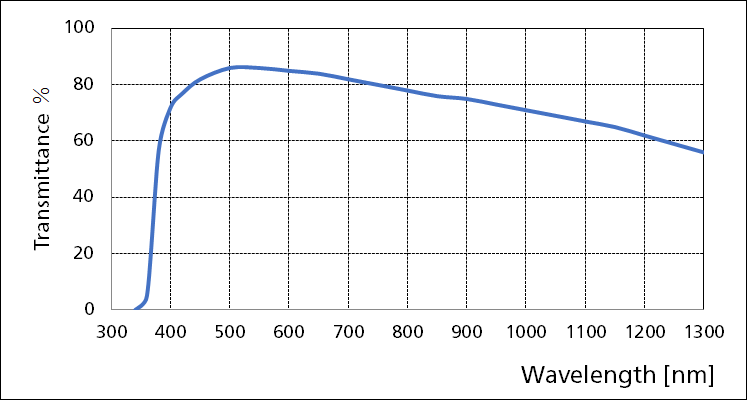

CFI Apochromat LWD Lambda S 20XC WI Diagram Graph 0.95 0.95 (0.99-0.90) 0.11-0.23 BF, DF (Oil), DIC, POL, FL (Visible light, NIR)

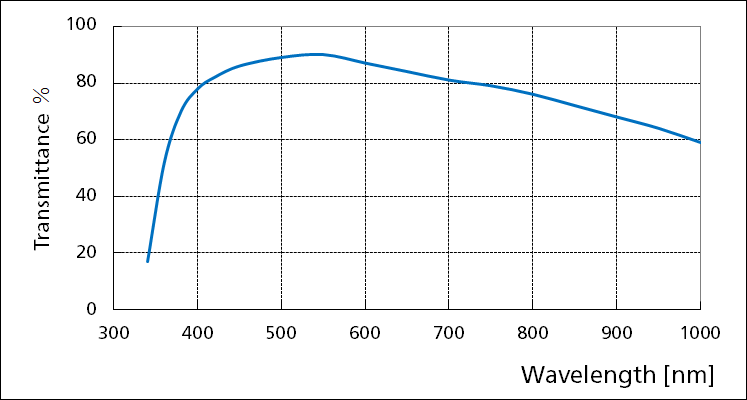

CFI Apochromat Lambda S 40XC WI Diagram Graph 1.25 0.18 (0.20-0.16) 0.15-0.19 BF, DIC, PH**, POL, FL (Visible light, UV)

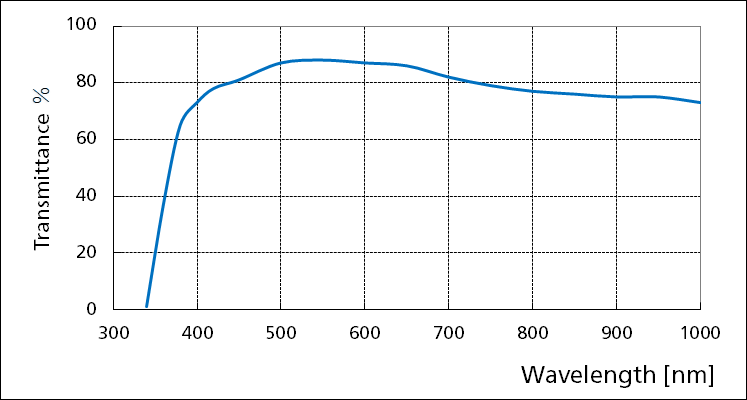

CFI Apochromat LWD Lambda S 40XC WI Diagram Graph 1.15 0.60 (0.61-0.59) 0.15-0.19 BF, DF (Oil), DIC, PH**, POL, FL (Visible light, UV)

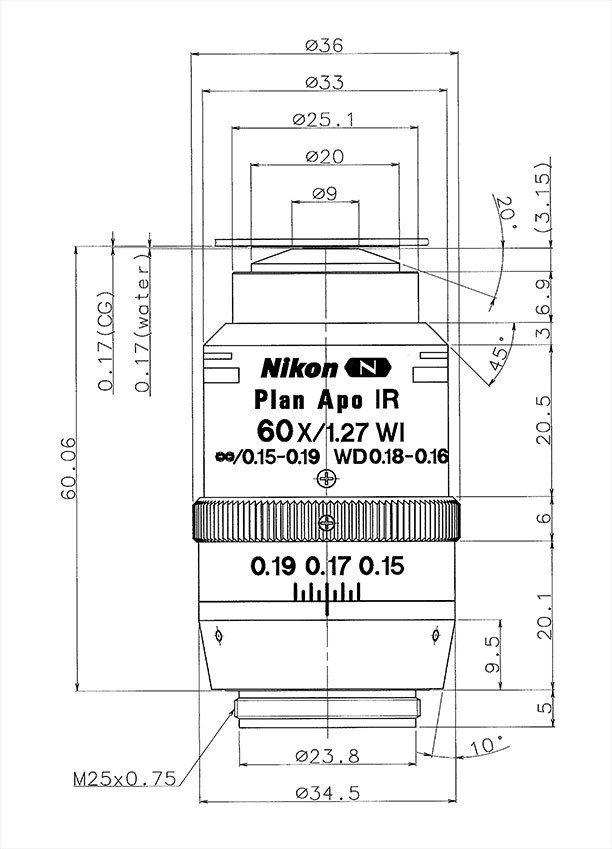

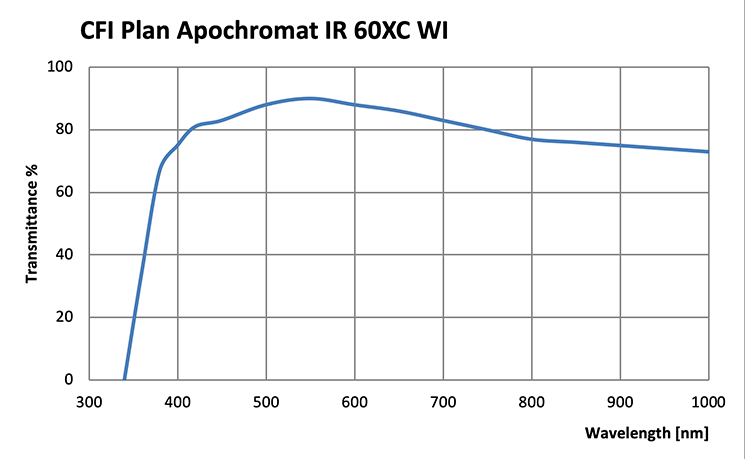

CFI Plan Apochromat IR 60XC WI Diagram Graph 1.27 0.17 (0.18-0.16) 0.15-0.19 BF, DIC, PH**, POL, FL (visible light, UV, NIR)

BF: Brightfield
DF: Darkfield
PH: Phase contrast
POL: Simple polarizing
FL: Fluorescence

*Possible but not recommended
**External phase contrast observation is possible with ECLIPSE Ti2-E
