CFI Achromat Series for Apodized Phase Contrast

We are closely monitoring the situation with COVID-19 (coronavirus) and following the guidance of the Centers for Disease Control and Prevention (CDC) and federal, state and local health authorities. Learn more about the measures we have put in place.



CFI Apodized Achromat Series objective lenses for phase contrast microscopy.

Nikon specifically developed this microscope objective series for phase contrast observation by using its proprietary Apodization process to improve the objective's phase ring. Division activities taking place within a specimen - often obscured by unwanted halos - can now be observed more clearly.


Specifications

Model Dimensions Transmittance NA W.D.
(mm)
Cover glass thickness Correction ring Observation

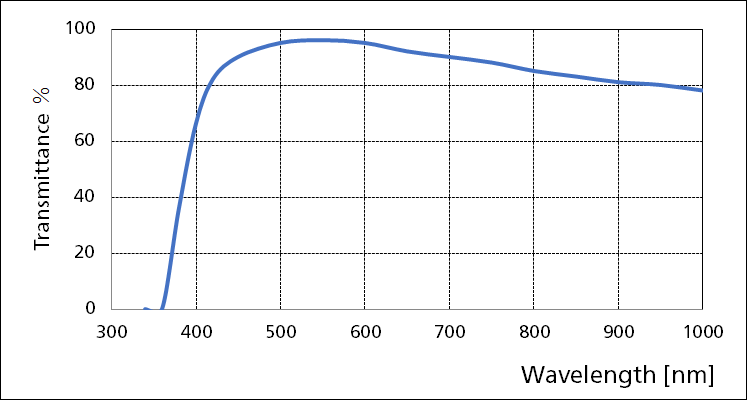

CFI Achromat ADL 10XF Diagram Graph 0.25 6.20 1.20 BF, PH, POL*, FL (visible light*)

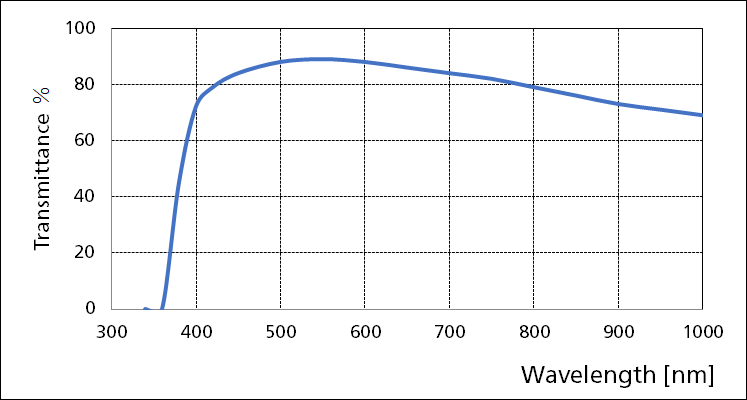

CFI Achromat LWD ADL 20XF Diagram Graph 0.40 3.10 1.20 BF, PH, POL*, FL (visible light*)

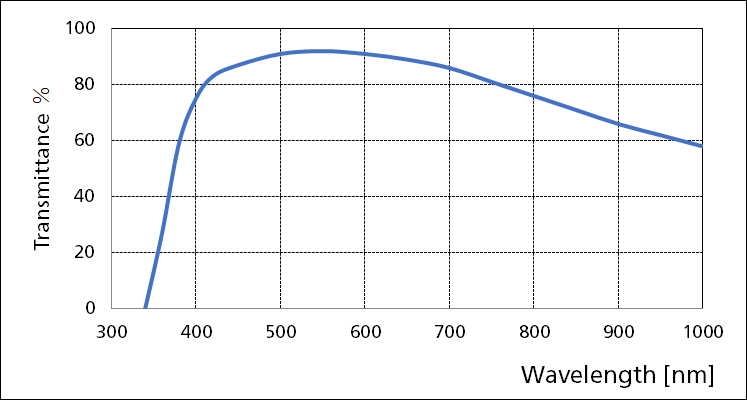

CFI Achromat LWD ADL 40XF Diagram Graph 0.55 2.10 1.20 BF, PH, POL*, FL (visible light*)
CFI Achromat LWD ADL 40XC Diagram Graph 0.55 2.70-1.70 0-2.00 BF, DF (Dry/Oil), PH, POL*, FL (visible light*)

BF: Brightfield
DF: Darkfield
PH: Phase contrast
POL: Simple polarizing
FL: Fluorescence

*Possible but not recommended

**External phase contrast observation is possible with Eclipse Ti2-E
