Nikon Advanced Modulation Contrast Objective Series

We are closely monitoring the situation with COVID-19 (coronavirus) and following the guidance of the Centers for Disease Control and Prevention (CDC) and federal, state and local health authorities. Learn more about the measures we have put in place.



Dedicated objectives for advanced modulation contrast.

Colorless and transparent samples can be observed in high relief, even through plasticware, which is not possible with DIC. The direction of contrast can be matched to S Plan Fluor ELWD NAMC objectives, thereby allowing optimal contrast selection for techniques like microinjection and ICSI.

Download Objectives Concept Brochure (9.28MB)


Specifications

Model Dimensions Transmittance NA W.D. (mm) Cover glass thickness (mm) Correction ring Observation

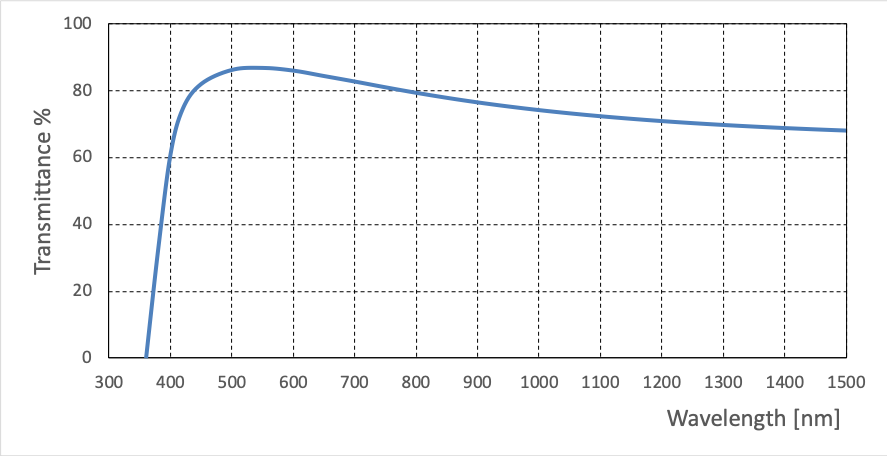

CFI Achro NAMC 10XF Diagram Graph 0.25 6.20 1.20 NAMC, BF, FL (visible light*)

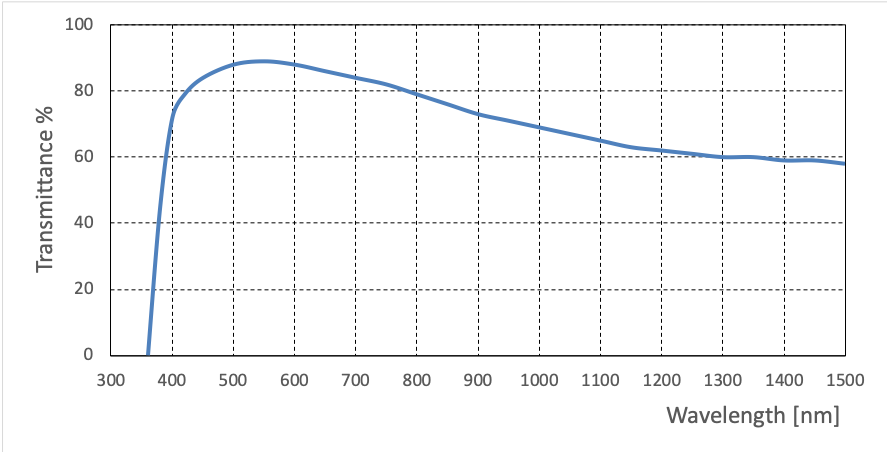

CFI Achro LWD NAMC 20XF Diagram Graph 0.40 3.10 1.20 NAMC, BF, FL (visible light*)
CFI Achro LWD NAMC 40XC Diagram Graph 0.55 2.70 - 1.70 0 - 2.00 NAMC, BF, FL (visible light*)

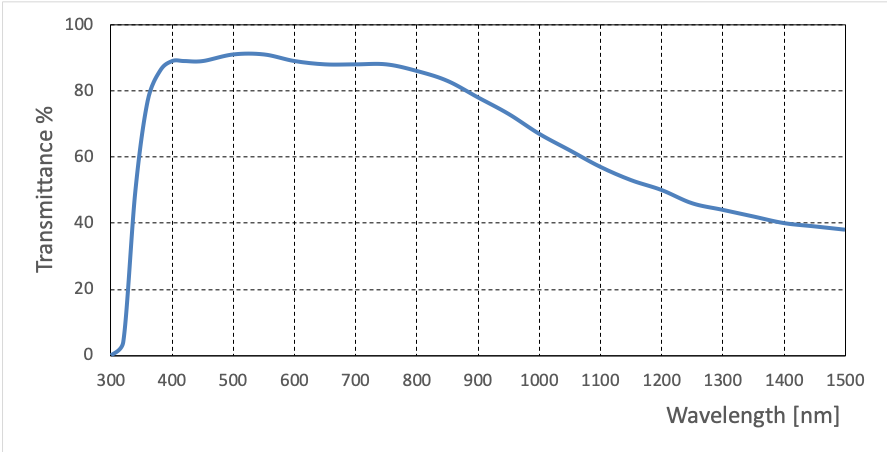

CFI S Plan Fluor ELWD NAMC 20XC Diagram Graph 0.45 8.20 - 6.90 (7.40 with cover glass thickness of 1.2 mm) 0 - 2.00 NAMC, BF, FL (visible light, UV)

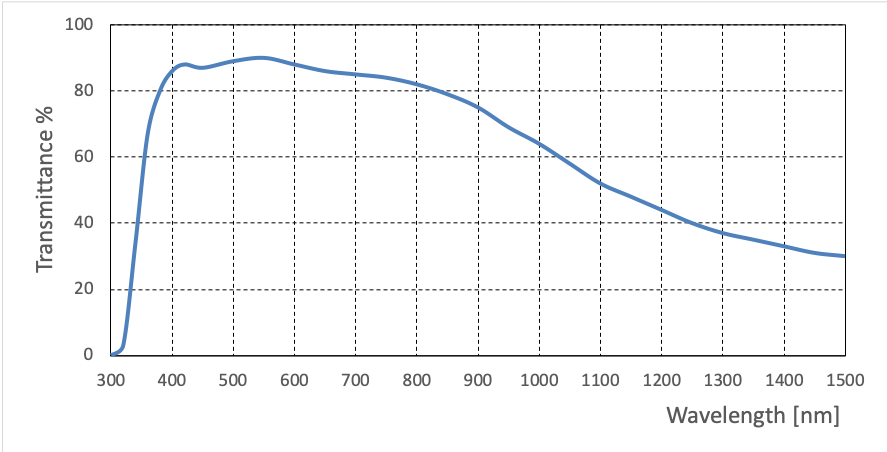

CFI S Plan Fluor ELWD NAMC 40XC Diagram Graph 0.60 3.60 - 2.80 (3.10 with cover glass thickness of 1.2 mm) 0 - 2.00 NAMC, BF, FL (visible light, UV)

NAMC: Nikon Advanced Modulation Contrast
BF: Brightfield
FL: Fluorescence

*Possible but not recommended
