Dispersion Staining Series

We are closely monitoring the situation with COVID-19 (coronavirus) and following the guidance of the Centers for Disease Control and Prevention (CDC) and federal, state and local health authorities. Learn more about the measures we have put in place.


Identification of unknown materials by their dispersive properties is possible using these specialized objectives.

Dispersion staining (DS) microscopy refers to a family of analytical optical staining methods used to help determine the identity of unknown microscopic materials. The dispersive properties of the unknown material can be probed when immersed in a material with known dispersion curve. Color (wavelength) is then used as readout of differences in dispersive properties. DS microscopy is commonly applied in testing for the presence of asbestos in construction materials.

Nikon offers phase-type DS (R-DS) objectives to meet customer needs. R-DS phase contrast objectives for dispersion staining use a phase plate to block the waveband where the refractive indices of two materials are similar.


Model Dimensions Transmittance NA W.D. (mm) Cover glass thickness (mm) Correction ring Observation

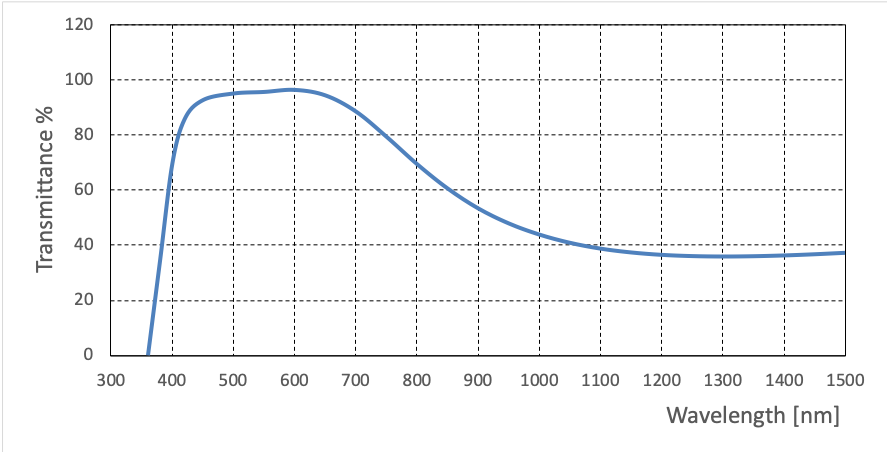

CFI R-DS 10X Diagram Graph 0.25 7.00 0.17 PH

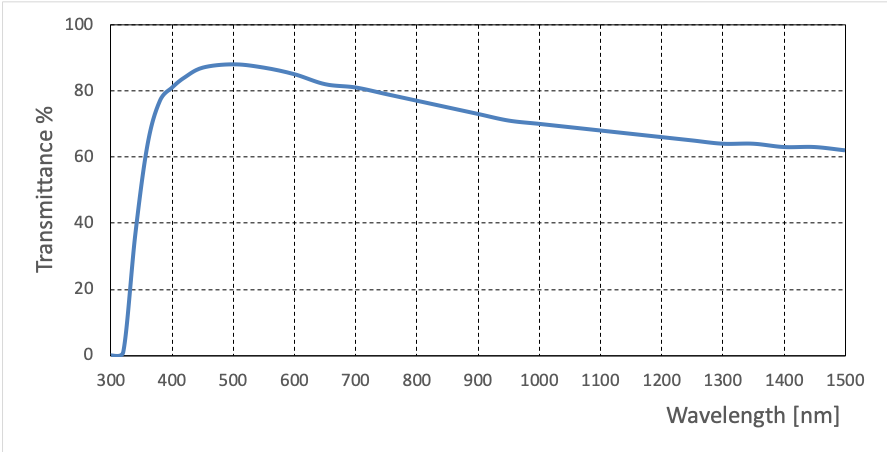

CFI Plan Fluor R-DS 40X Diagram Graph 0.75 0.66 0.17 PH
CFI Plan Fluor BM 40X Diagram Graph 0.75 0.66 0.17 BF, DF (Dry/Oil), PH, FL (visible light, UV)

BF: Brightfield
DF: Darkfield
PH: Phase contrast
FL: Fluorescence
