Specifications
| Main Body | ECLIPSE Ei binocular set | ECLIPSE Ei trinocular set |
|---|---|---|
| Optical system | CFI Infinity Optical System | |
| Illumination | High luminescent white LED illuminator, 45mm diameter filter can be installed | |
| Eyepieces (F.O.V., mm) | With diopter adjustment
|
|
| Focusing mechanism | Coaxial coarse/fine focusing, Cross roller guide, Focusing stroke: up 2 mm/Down 13 mm, Coarse: 37.7 mm/rotation, Fine: 0.2 mm/rotation, With coarse focus knob torque adjustment ring, Includes stage vertical movement stopper | |
| ECLIPSE Ei binocular set | ECLIPSE Ei trinocular set | |
|---|---|---|
| Tubes | EC-T-TB Binocular Tube, Inclination: 30°, Pupillary distance: 50 - 75 mm, Eyepoint height: adjustable to 2 positions | EC-T-TF Trinocular Tube, Eyepiece/Port: 50/50, Inclination: 25°, Pupillary distance: 50 - 75 mm, Eyepoint height: adjustable to 2 positions |
| Revolving Nosepiece | Reversed-type quadruple nosepiece (within main body) | |
| Stage | Rectangular mechanical stage (within main body), with specimen holder, with vernier calibrations, Cross travel: 76 (X) x 30 (Y) mm | |
| Objectives (NA / W.D.) |
|
|
| Condenser | Abbe Condenser, NA 0.1~1.25, Color-coded position guide markings of aperture diaphragm, corresponding to objective magnifications | |
| Observation method | Brightfield | |
| Fungus-proof treatment | Antifungal paint is applied around optical system | |
| Optional accessories | Object marker, Eyepiece pointer, 45mm diameter filter, Objective micrometer | |
| Power supply | Uses the included AC adapter (input: 100-240 VAC 0.48A Max. 50-60Hz, output: 5.0 VDC, 3.0A Max.) | |
| Power consumption (max.) | Nominal value: 4W | |
| Weight (approx.) | 5.2kg | 5.5kg |
*Optional

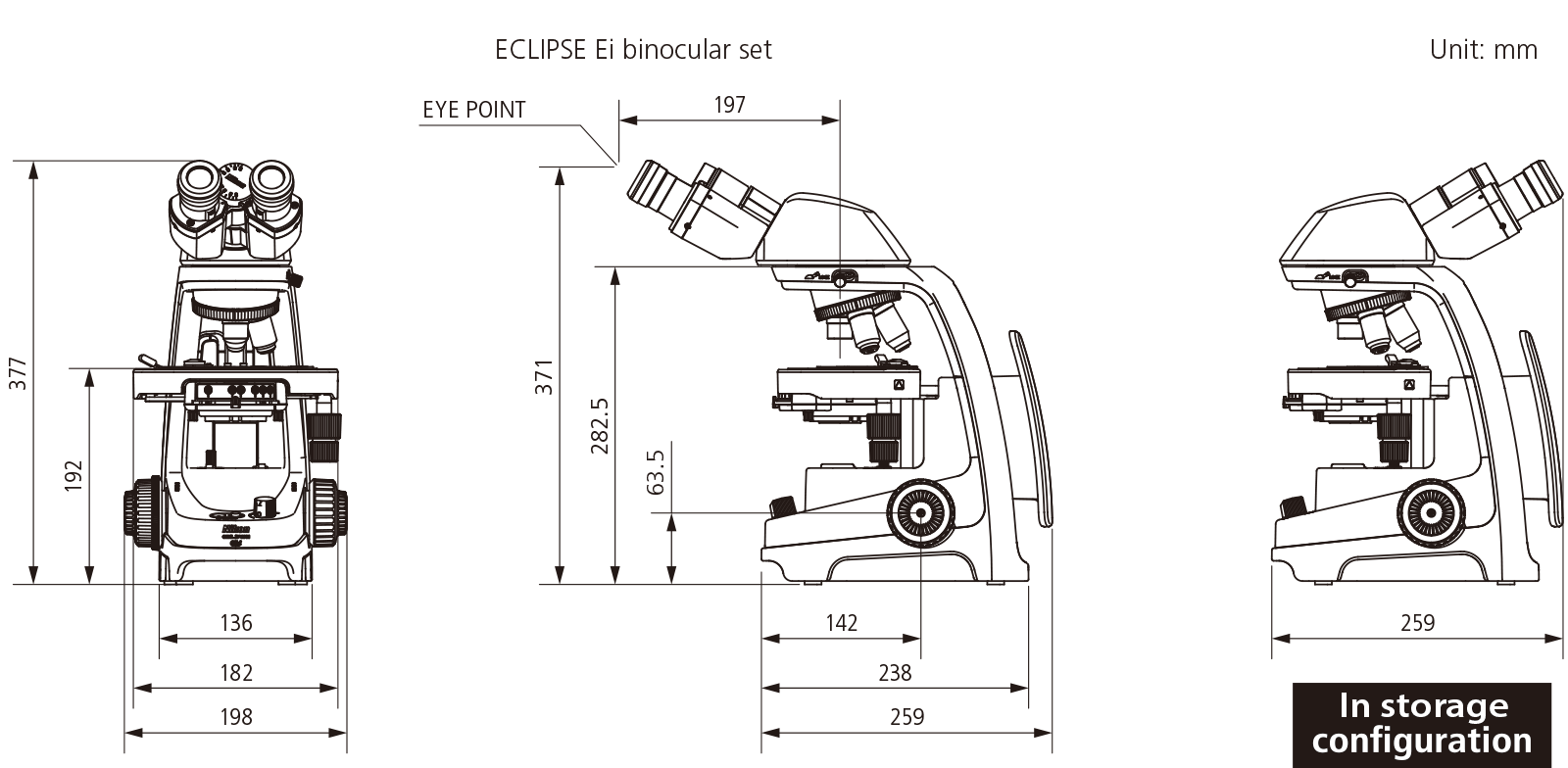

Dimensional Diagram
