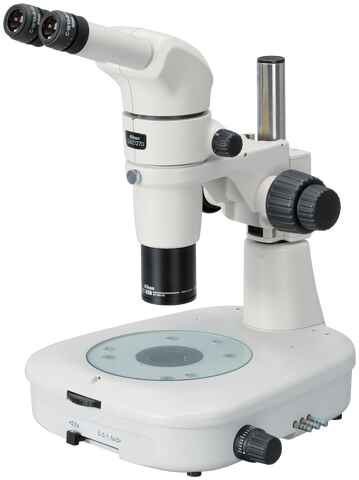

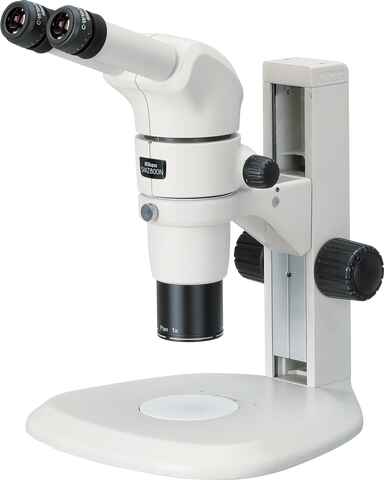

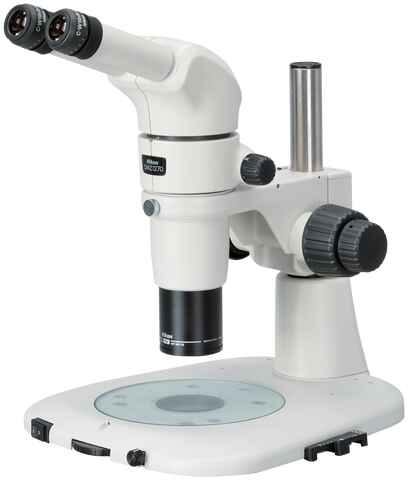

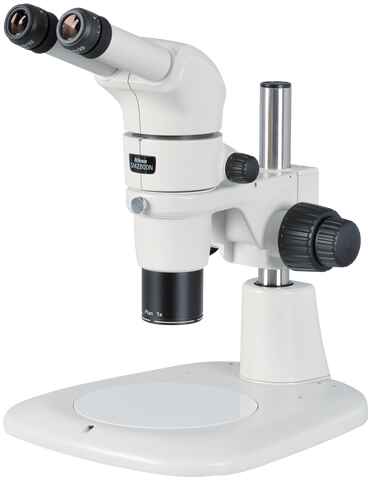

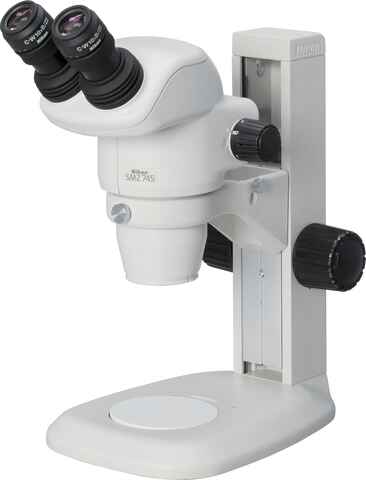

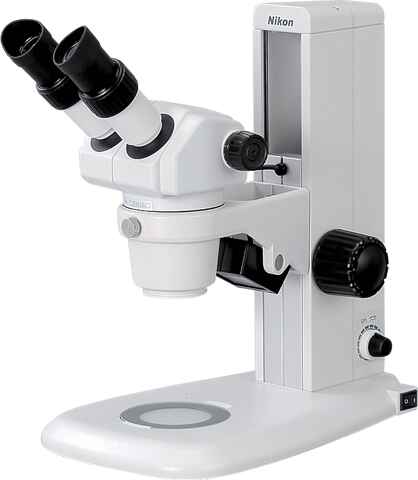

Stands
Universal Table Stands/Focusing Mounts
Universal Table Stands G-US1A/G-US2
These stands are handy in microscopy with large samples not loaded onto the standard stand. The microscope zooming body is mounted to the stand arm via a focusing mount. The G-US1A is a table clamp type (table top thickness: 3 to 53 mm).
- Used in conjunction with the C-FMBN Focusing Mount BN on the SMZ1270/1270i/800N/745/745T/445/460.
- Used in conjunction with the SM Focusing Mount and the G-USA SM US Adapter on the SMZ-2.
- Cannot be used with the SMZ1270/1270i/800N when intermediate tube is mounted on these models.
G-US1A Universal Table Stand 1
Unit: mm
G-US2 Universal Table Stand 2
The image is a configuration sample with the SMZ745.
Unit: mm
Universal Table Stand US-3
Not only can it be used for a large sample, but this extremely stable stand also easily accommodates intermediate tubes.
- Used in conjunction with the C-FMAN Focusing Mount AN on the SMZ1270/1270i/800N/745/745T/445/460.
- Used in conjunction with the SM Focusing Mount on the SMZ-2.
Universal Stand US-3
The image is a configuration sample with the SMZ745.
Unit: mm
Specifications
Universal Table Stand | G-US1A | G-US2 | US-3 |
---|---|---|---|
Vertical cross travel | 253mm | 254mm | 229mm |
Horizontal cross travel | 260mm | 272mm | |
Weight (approx.) | 4.4kg | 23.0kg | 30.5kg |
C-FMAN Focusing Mount AN | — | ◯ | |
C-FMBN Focusing Mount BN | ◯ | — | |
C-FMCN Focusing Mount CN | — | — | |
SM Focusing Mount | ◯* | ◯ |
◯: Possible
* G-USA Adapter is required
G-USA Adapter
The image is a configuration sample with the SM Focusing Mount.
Focusing Mounts
Various types of focusing mounts are available depending on use. They are used to incorporate stereo microscope bodies into IC bonders or other devices (SM Focusing Mount is for SMZ-2). These mounts can also be used when attaching microscopes to Universal Table Stands.
C-FMAN Focusing Mount AN: ø76mm
SM Focusing Mount: ø62mm
C-FMBN Focusing Mount BN
C-FMCN Focusing Mount CN
Focusing Mounts | C-FMAN Focusing Mount AN | C-FMBN Focusing Mount BN | C-FMCN Focusing Mount CN | SM Focusing Mount |
---|---|---|---|---|
Focusing area | 40mm | 50mm | 50mm | 40mm |
Weight (approx.) | 0.6kg | 0.8kg | 1.6kg | 0.6kg |
Antistatic function (ESD) | ◯ | ◯ | — | — |
Compatible microscopes | SMZ1270 / 1270i / 800N / 745 / 745T / 445 / 460 | SMZ-2 |
