Micromanipulators

Enhancing Precision and Control in Microscopy

A high-quality micromanipulator system is essential for precision experiments, seamlessly integrating with a microscope to enhance stability, accuracy, and ease of use. Nikon offers two advanced micromanipulator solutions: the Narishege NTX, a compact and customizable system ideal for applications like ICSI, and Sensapex uMp Micromanipulators, optimized for electrophysiology with zero-drift technology and closed-loop positioning. Both systems provide intuitive control, ensuring precise sample manipulation while maximizing efficiency and experimental success.


Key Features

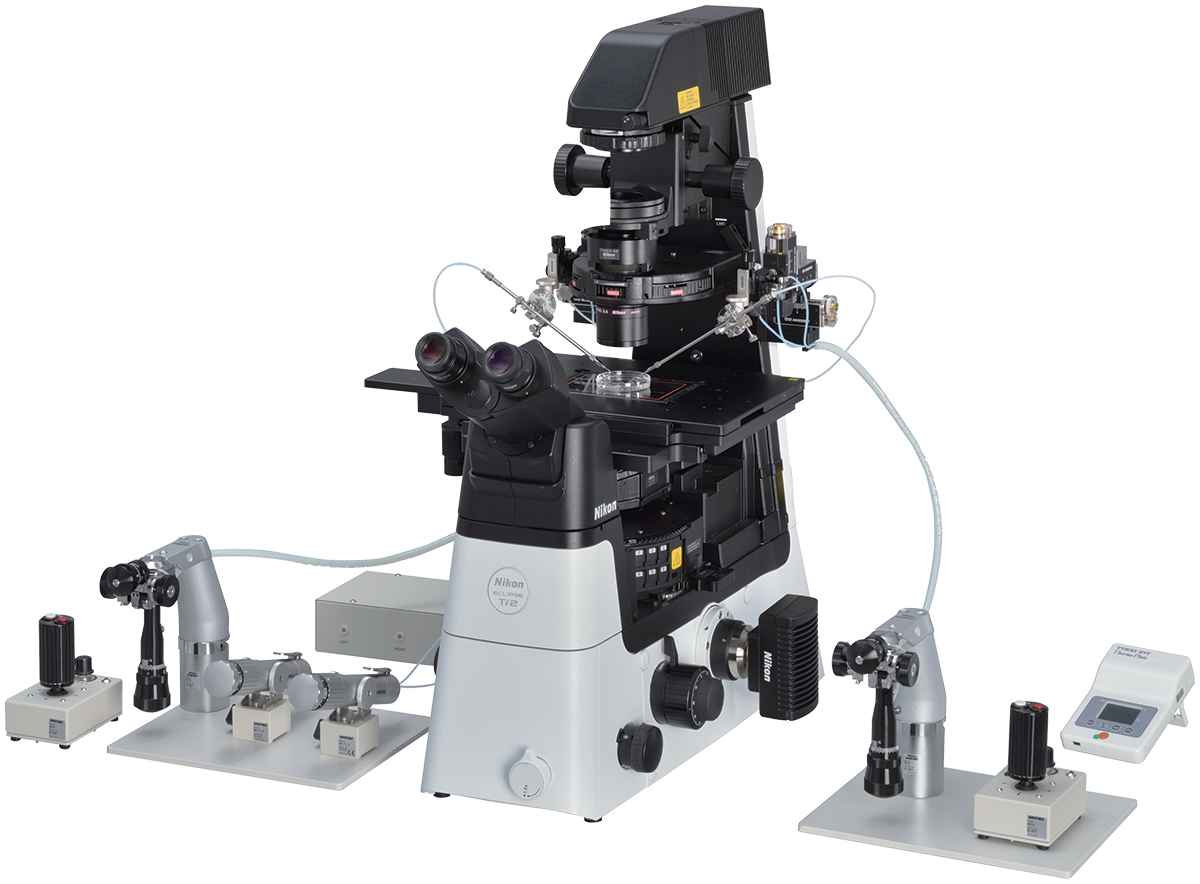

Narishige NTX Series Micromanipulators

This compact, high-precision micromanipulator system allows you to configure the optimum combination to suit your specific micromanipulation needs. Nikon microscopes have played a significant role from the early days of intracytoplasmic sperm injection (ICSI) and continue to contribute to the advancement of this field through superior optical performance and precision.

  • Compact and stable design.
  • Reduced distance from manipulator mount to microelectrode tip increases stability.
  • Hanging type joystick provides superior operability.
  • Smooth movement without microelectrode drift.
  • Easy pipette holder angle adjustment.
  • Universal joint allows accurate angle operation.
  • Enables selection between 3D motor-drive coarse manipulator and 3D oil-hydraulic fine manipulator.
  • Microelectrode position memory function for easy petri dish exchange.

Sensapex uMp Micromanipulators

Optimized for use with the Sensapex FN-M electrophysiology microscope, Sensapex micromanipulators deliver exceptional usability and stability. With a compact, space-saving design, zero-drift technology, and closed-loop positioning, these manipulators ensure electrodes are placed with absolute precision.

  • Zero-drift technology — the most stable micromanipulator, making pipette drift a thing of the past
  • Compact — leave more space for your experiment
  • Easy to install and use — focus on your experiments, not on tools
  • Closed-loop control — the most accurate micromanipulator on the market, ensuring electrodes end up exactly where they need to be, every time
  • Short latency computer interface through Ethernet and NIS-Elements integration

Sensapex Micromanipulators Specifications

Sensapex uMp3 Manipulators

Positioning range

20 x 20 x 20 mm3 (XYZ)

Resolution

5 nm

Repeatability

50 nm

Max Speed

5 mm/s

Load

0 - 150 g

Approach angle

0 - 45

Control

HubLite*, Multi-function joystick and Touchscreen Controller

* Each Hub can control up to 4 Manipulators

* All Sensapex products are patented technologies with a design and manufacture base in Oulu, Finland.
