Fluorescent Filter Cubes

We are closely monitoring the situation with COVID-19 (coronavirus) and following the guidance of the Centers for Disease Control and Prevention (CDC) and federal, state and local health authorities. Learn more about the measures we have put in place.



High-performance/high-quality fluorescence filter cubes for research that demands precise signal detection.

Nikon offers a wide range of fluorescence filter cubes with high fluorescence acquisition efficiency to support imaging of a large variety of fluorophores and fluorescent proteins. The large product range includes longpass filter cubes for observation of single-stained samples and bandpass filter cubes suitable for detecting specific wavelengths from multiple-stained samples and un-mixing. All fluorescence filters are manufactured utilizing the most advanced hard-coat sputtering techniques available for precision and durability.

  • Wavelengths with an extremely sharp rising edge characteristic.
  • High transmittance from 93% to 97% (both excitation and barrier filters).
  • High fluorescence acquisition efficiency, enabling reduced excitation intensity and sample fading.
  • All series filters are made of glass with high dimensional accuracy which eliminates the possibility of image shifts when superimposing multi-color images and ensure accurate imaging even in the case of fluorophores with small Stokes shifts.

Longpass filter cubes

Filter CubeExcitationSpectral profileFilter diameterExcitation filterDichroic mirrorBarrier filter
DAPIUVgraph25mm375/28415435
Fluoro Gold Calcofluor WhiteUVgraph25mm375/28415515

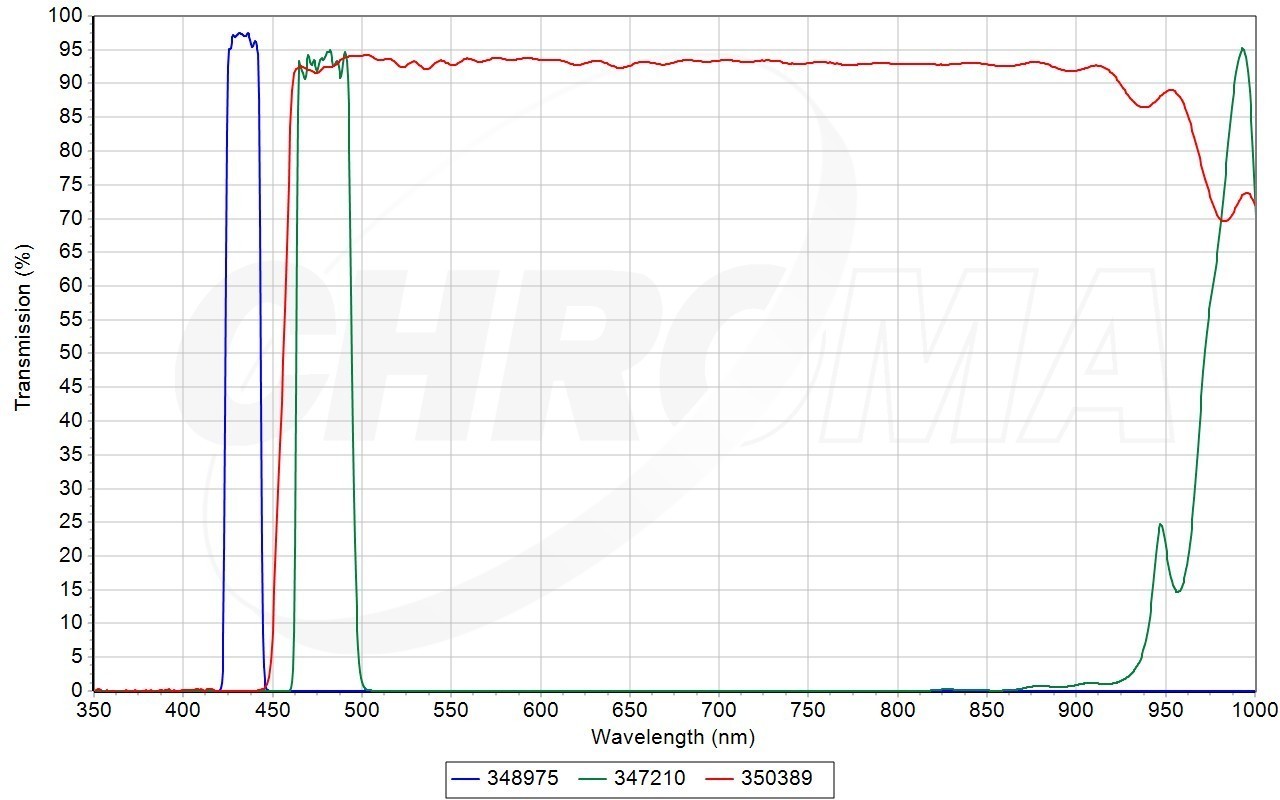

AquaVgraph25mm420/40455465
GFP/FITCBgraph25mm480/30505515
TRITC/CY3Ggraph25mm540/25565575

Bandpass filter cubes

Standard AT Series

Filter Cube Spectral profile Filter diameter Excitation filter Dichroic mirror Barrier filter

DAPI/Hoechst/Alexa Fluor 350
graph 25 mm 375/28 415 460/60
ECFP/Cerulean graph 25 mm 470/40 500 535/50

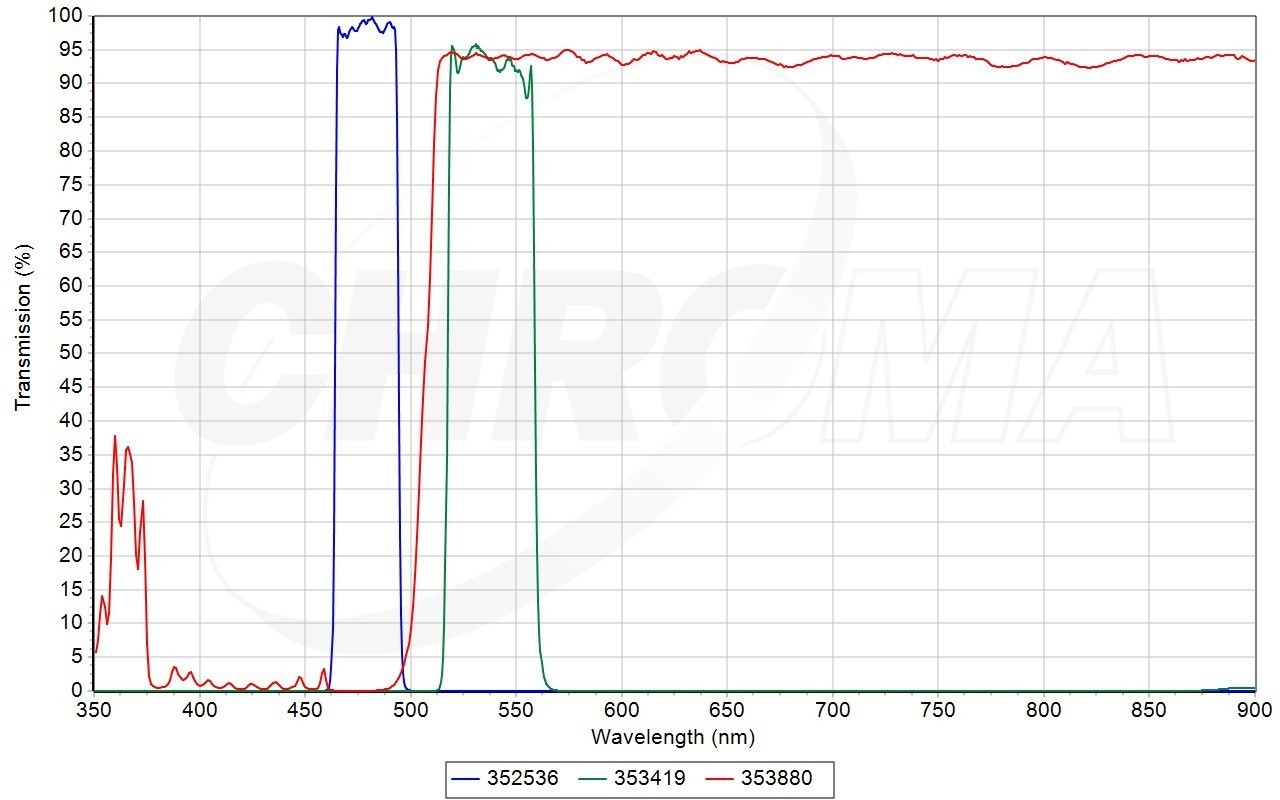

EGFP/FITC/Cy2/Alexa Fluor 488 graph 25 mm 480/30 505 535/45
EYFP/Venus/Citrine graph 25 mm 540/25 565 605/55

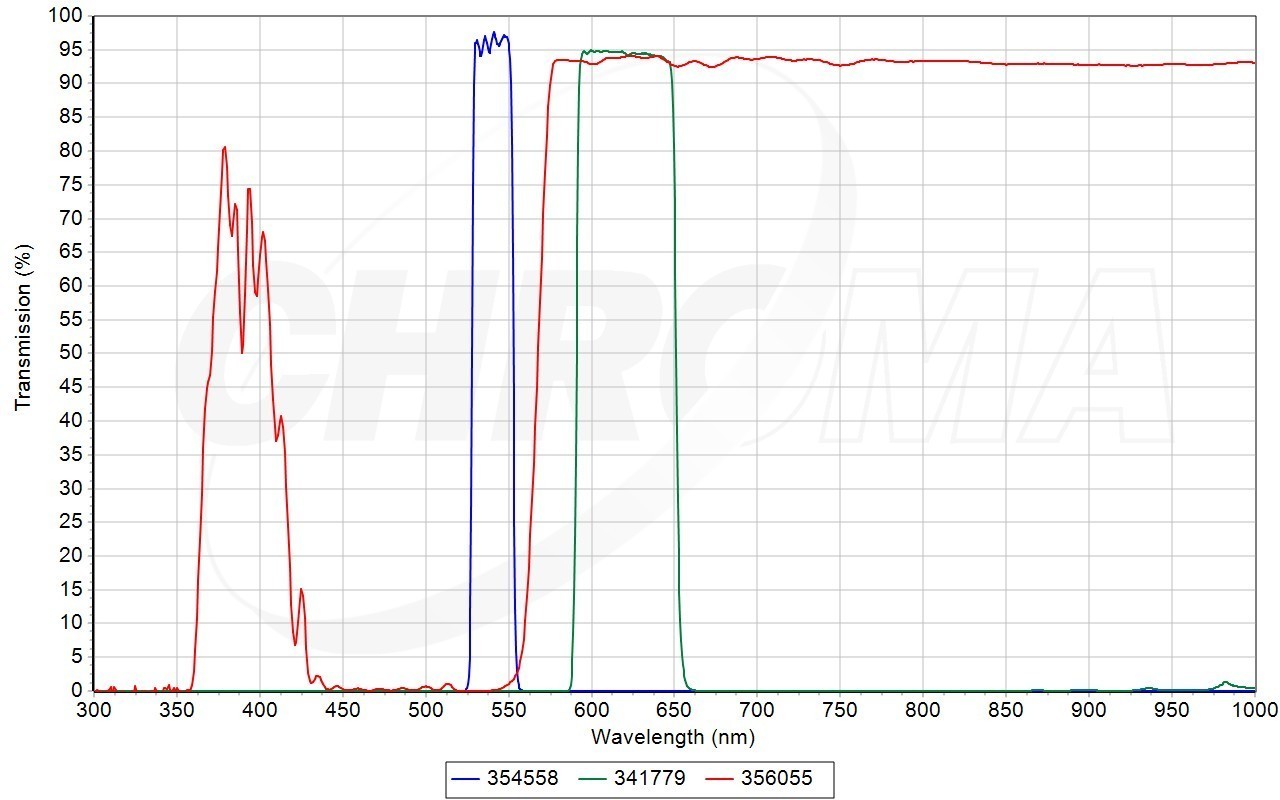

TRITC/Cy3/TagRFP/Alexa Fluor 546 graph 25 mm 560/40 595 630/60
TRITC (Red Shifted) graph 25 mm 540/25 565 620/60

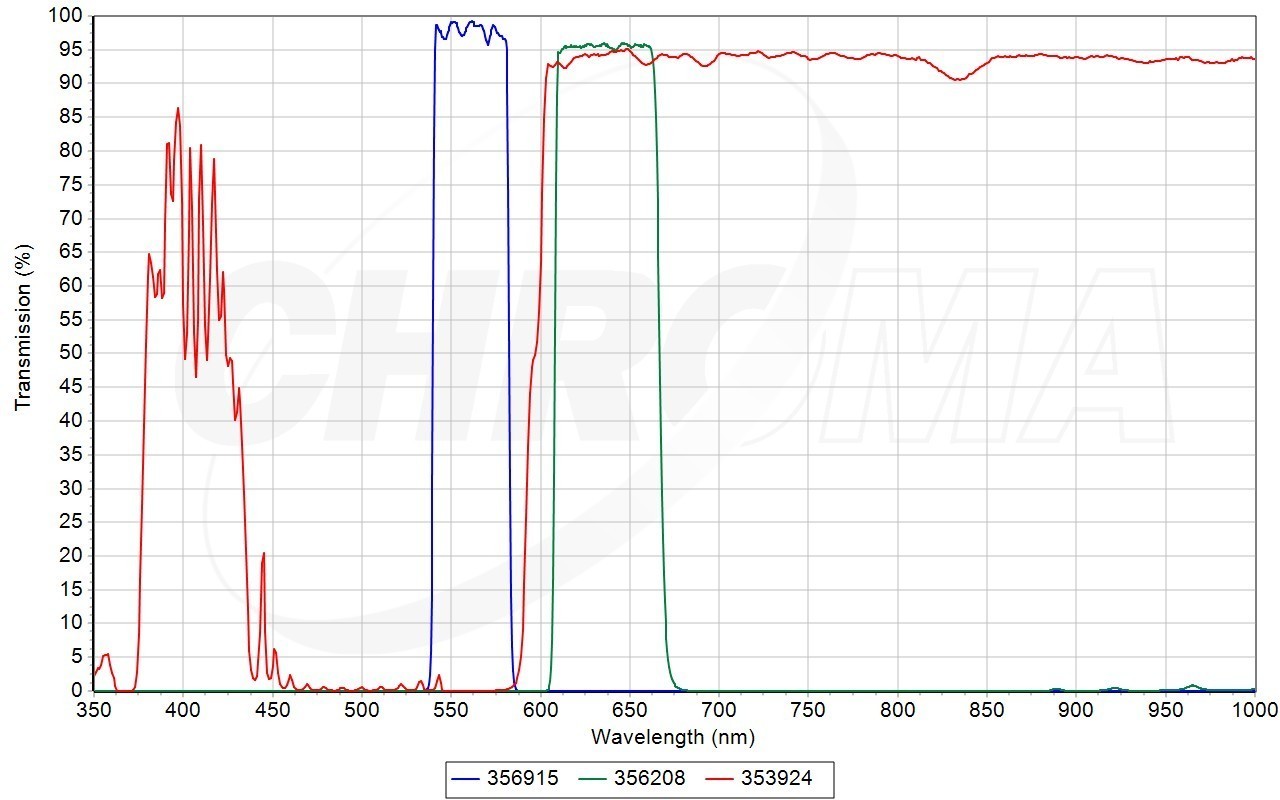

Texas Red/mCherry/Alexa Fluor 594 graph 25 mm 560/40 600 635/60

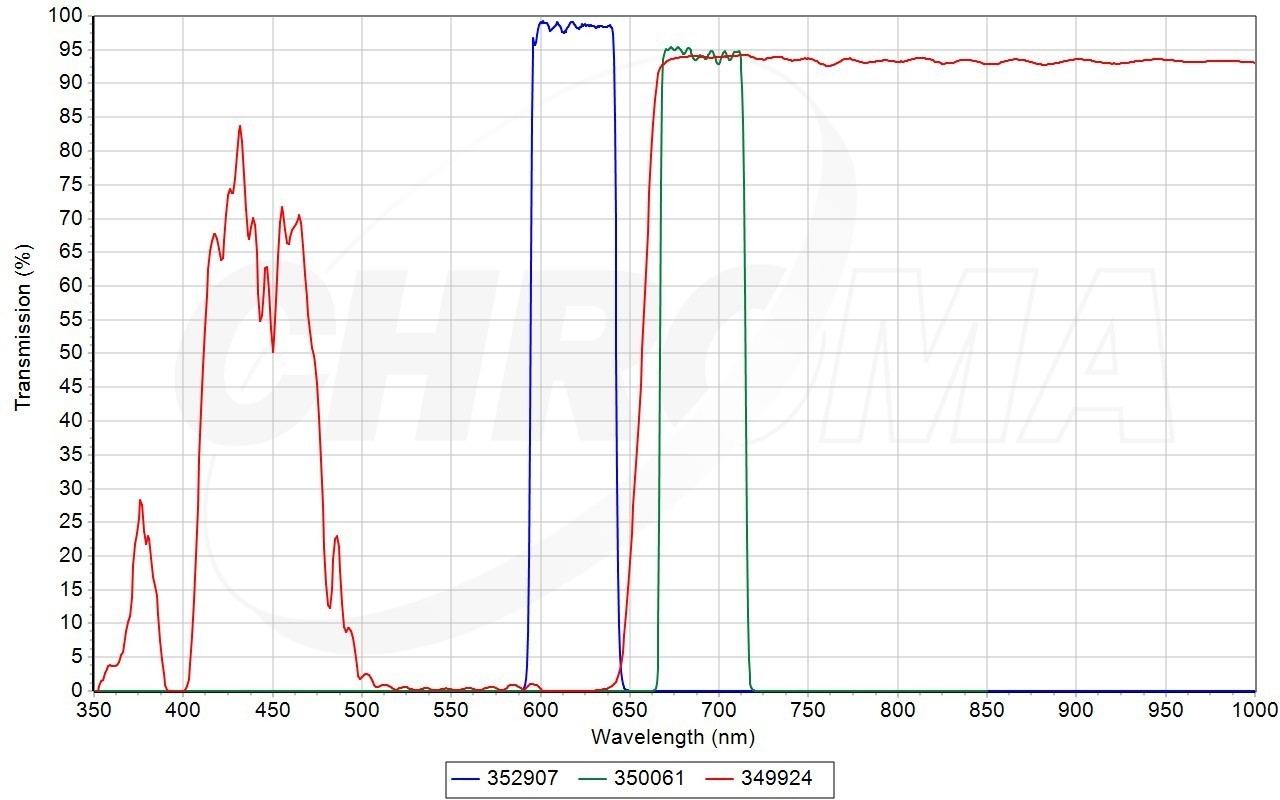

Cy5/AlexaFluor 647/Draq 5 graph 25 mm 620/50 655 690/50

High Signal-to-Noise BL Series

Filter Cube Spectral profile Filter diameter Excitation filter Dichroic mirror Barrier filter

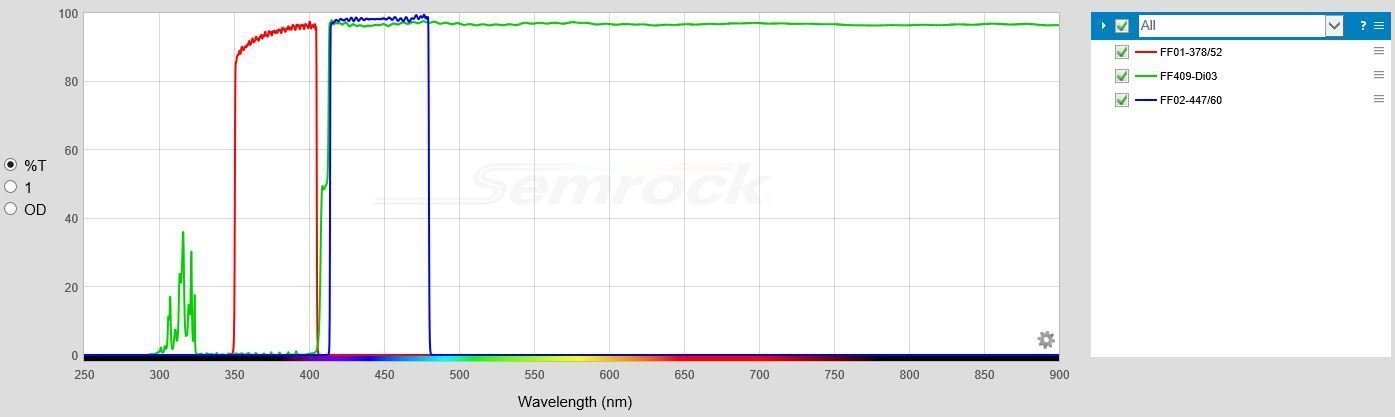

DAPI SOLA graph 25 mm 378/52 409 447/60

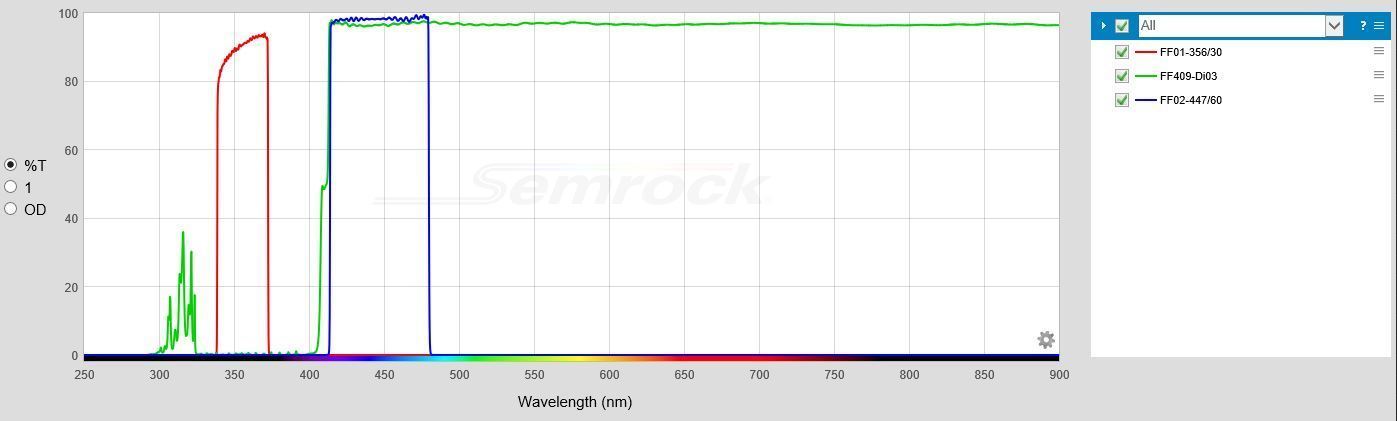

DAPI graph 25 mm 356/30 409 447/60

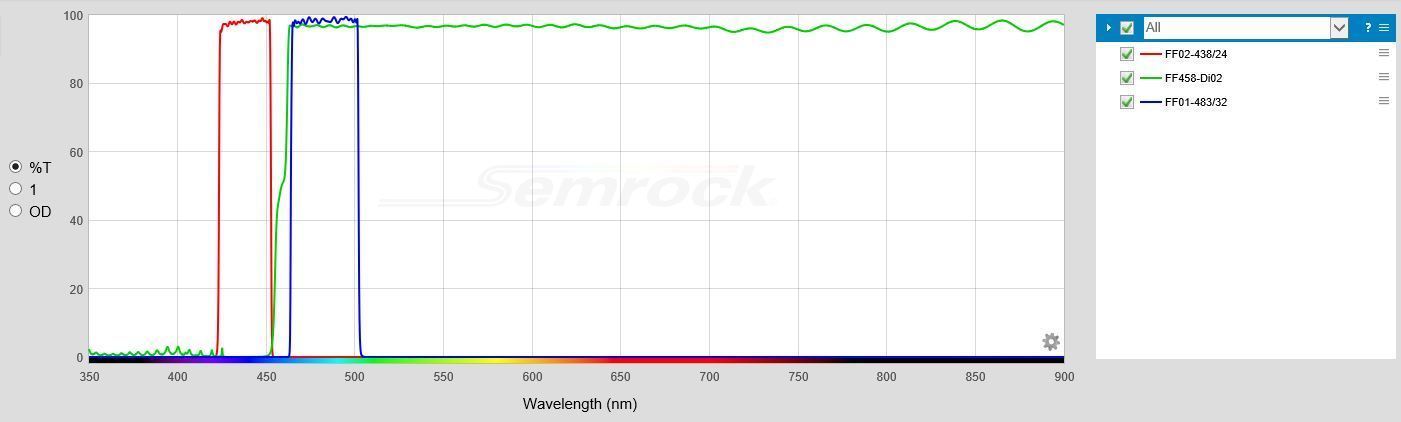

CFP graph 25 mm 438/24 458 483/32

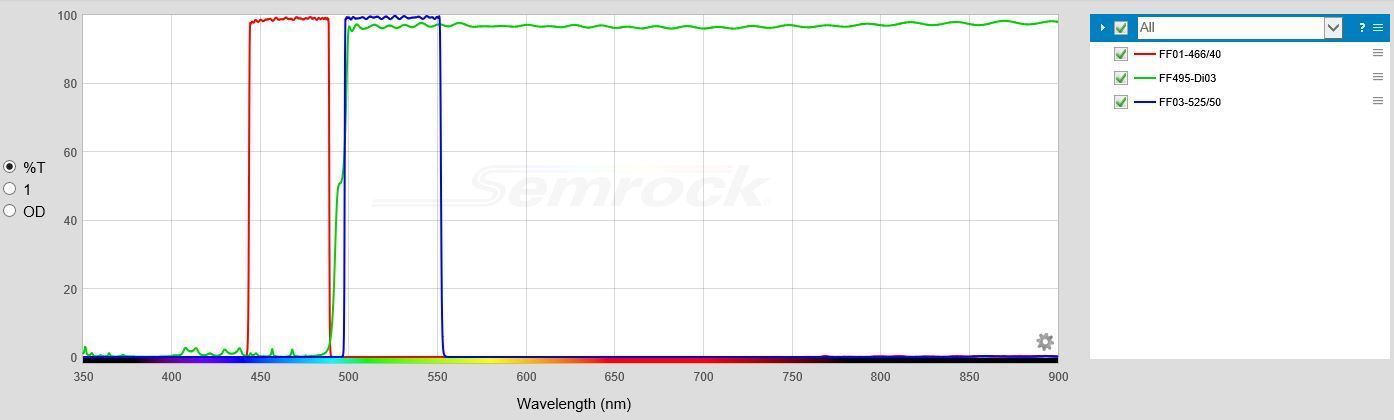

GFP/FITC/Cy2 graph 25 mm 466/40 495 525/50

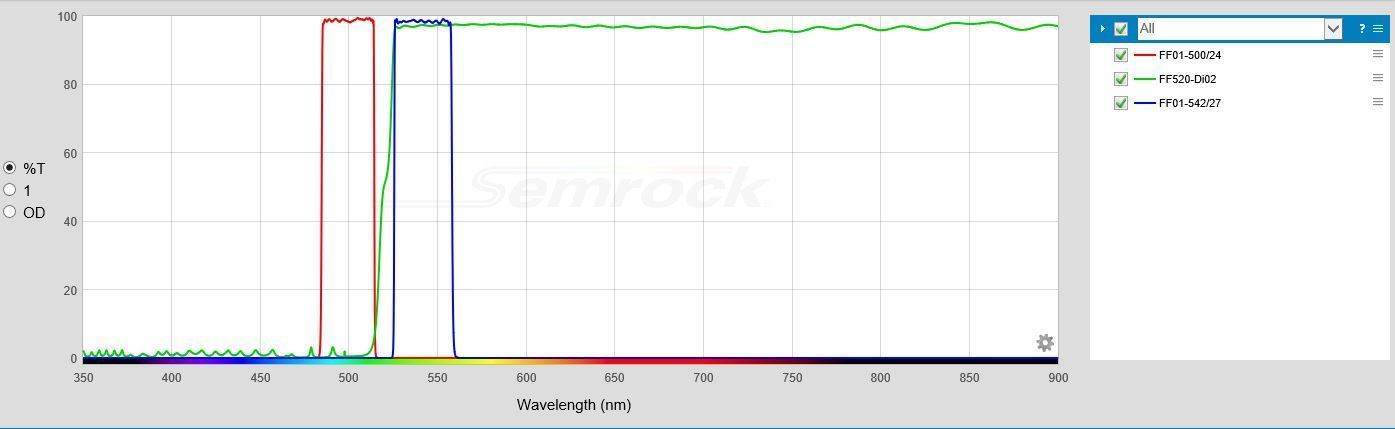

YFP graph 25 mm 500/24 520 542/27

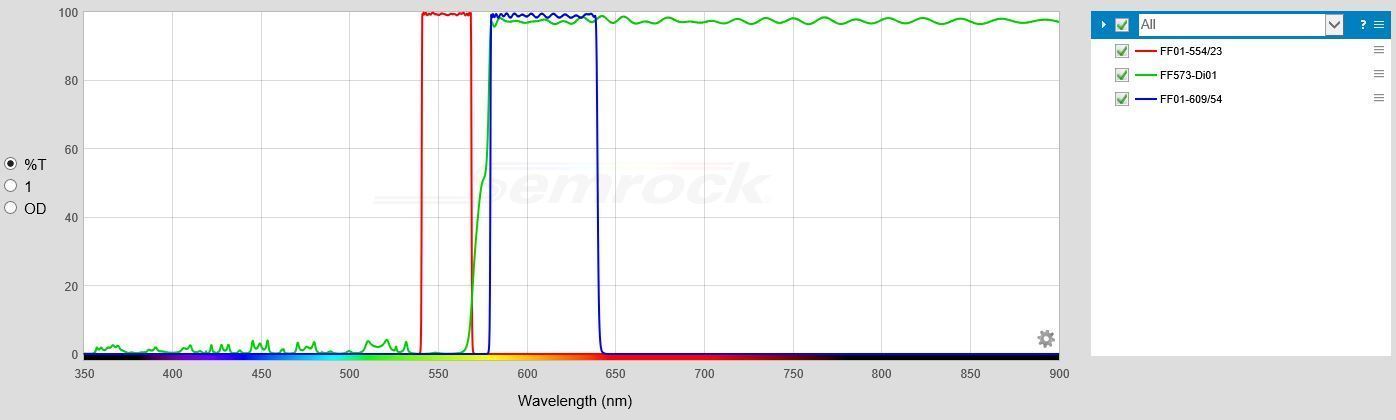

DS Red/TRITC/Cy3 graph 25 mm 554/23 573 609/54

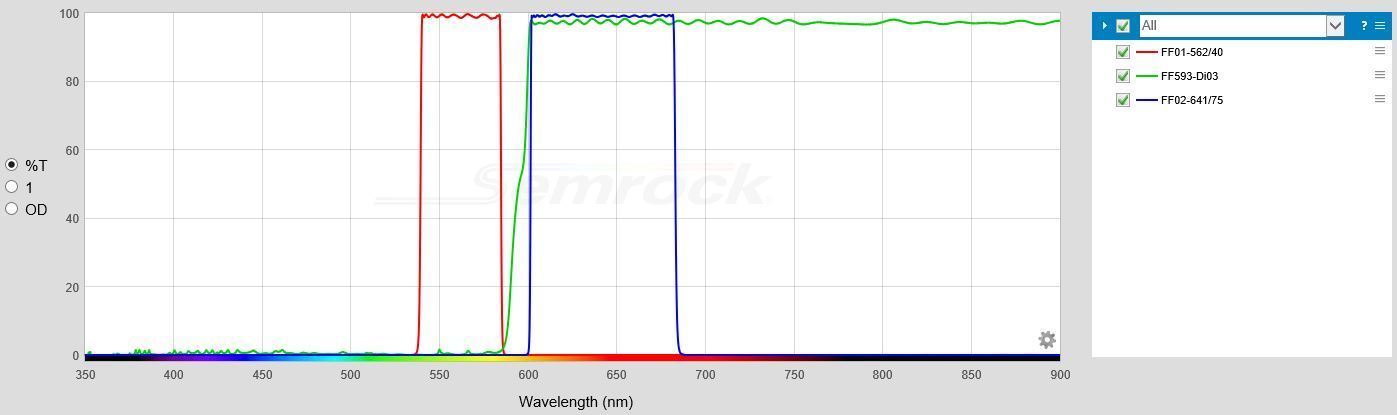

Texas Red/mCherry graph 25 mm 562/40 593 641/75

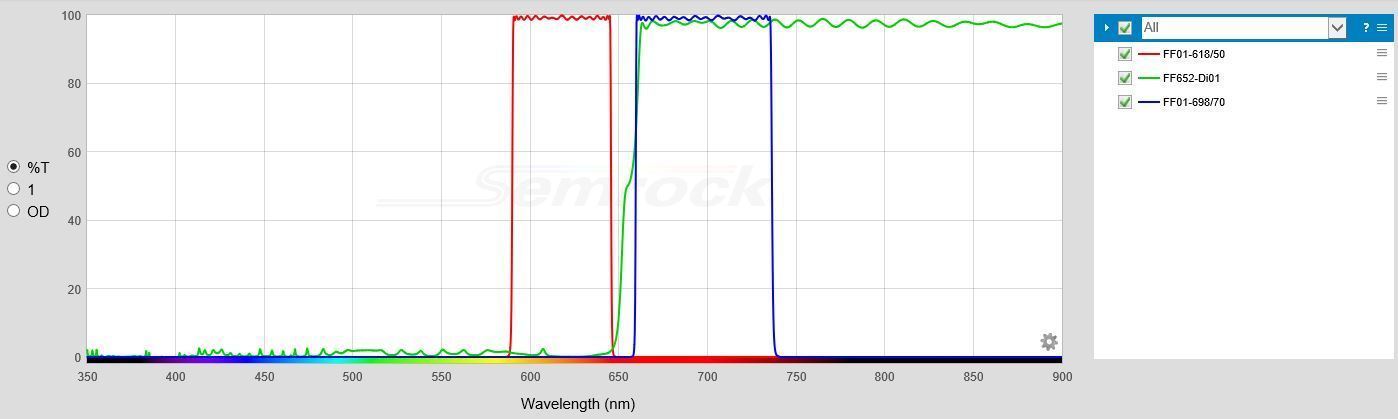

Cy5 graph 25 mm 618/50 652 698/70

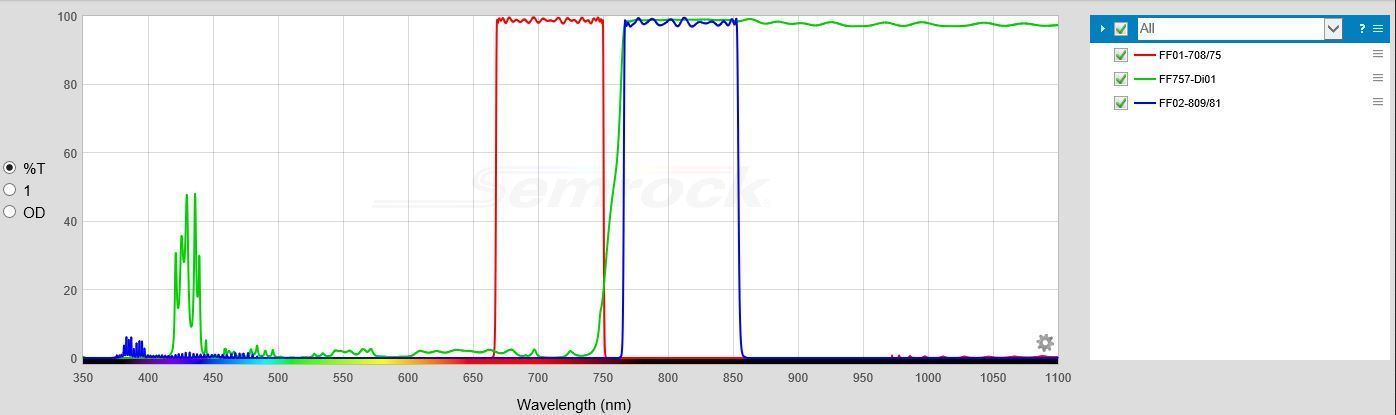

Cy7 graph 25 mm 708/75 757 809/81

High Signal-to-Noise BL Series (Large FOV imaging with Ti2 microscope)

Filter Cube Spectral profile Filter diameter Excitation filter Dichroic mirror Barrier filter
DAPI SOLA graph 32mm 378/52 409 447/60
DAPI graph 32mm 356/30 409/td>447/60
CFP graph 32mm 438/24 458 483/32
GFP/FITC/Cy2 graph 32mm 466/40 495 525/50
YFP graph 32mm 500/24 520 542/27
DS Red/TRITC/Cy3 graph 32mm 554/23 573 609/54
Texas Red/mCherry graph 32mm 562/40 593 641/75
Cy5 graph 32mm 618/50 652 698/70
Cy7 graph 32mm 708/75 757 809/81
