Center of Excellence
Princeton University
Princeton’s Nikon Center of Excellence was established to provide cutting-edge imaging technology to the local scientific community and to establish a mechanism for the exchange of ideas, methodologies and technologies between Princeton’s investigators and Nikon’s technology development teams.
The Center enables users to investigate the dynamics of single molecules to whole organisms and tissues by providing state-of-the art confocal and super-resolution imaging systems and expert technical guidance and support from the Center’s Director.
Contact
CofE Director
email hidden; JavaScript is required
Address
Princeton UniversityDepartment of Molecular Biology
116A Moffett Laboratory
Washington Road,
Princeton, NJ 08544
(609) 258-5432
Website
Systems Available

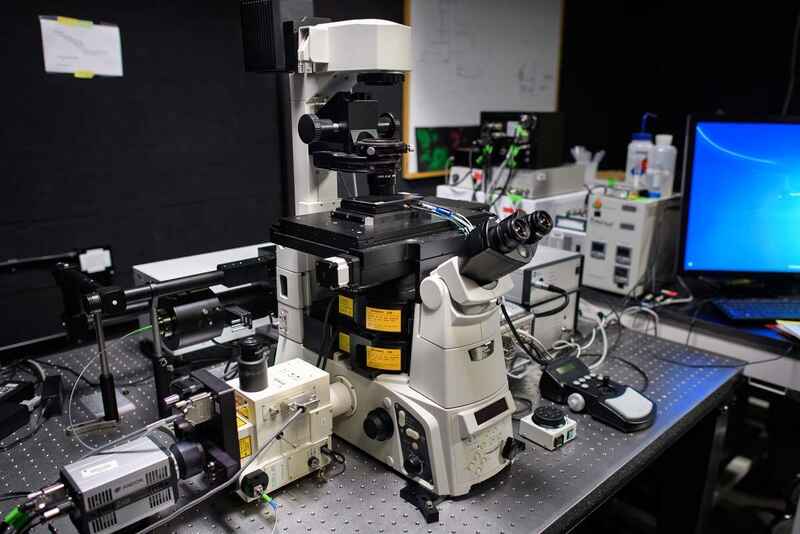

N-STORM/TIRF/CSU-21 Super-Resolution & Spinning Disk Confocal System
This system combines super-resolution N-STORM single molecule imaging with spinning disk confocal microscopy and ablation to provide a multimodal instrument suited for many biological imaging applications.
Components
- ECLIPSE Ti-E inverted microscope with Perfect Focus System (PFS)
N-STORM super-resolution single molecule localization microscopy system
- 4-line laser unit (405nm, 488nm, 561nm, 647nm)
- Andor iXon 897 EMCCD camera
- Mad City Labs Nano-Z series Z-axis piezo stage
- Okolab stage-top incubation system
- Andor Zyla 4.2 sCMOS camera
- Rapp OptoElectronic UGA Firefly Ablation Module
- Yokogawa CSU-21 spinning disk confocal
NIS-Elements software

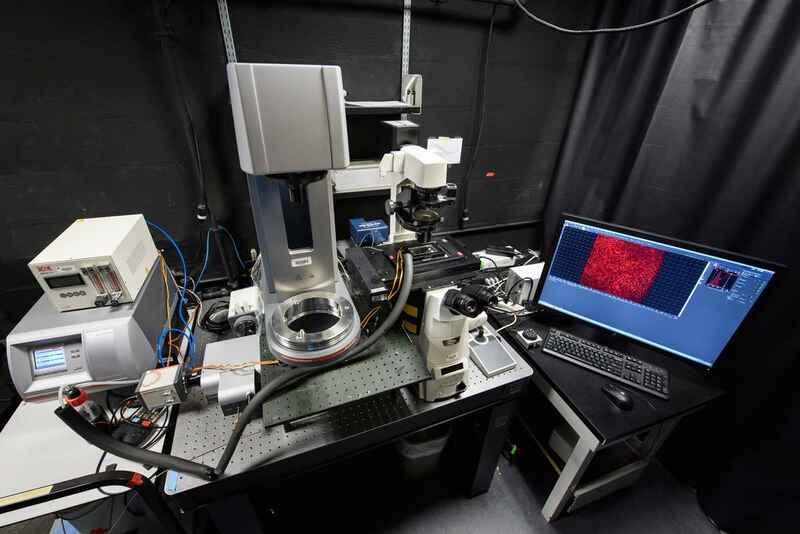

CSU-21 Spinning Disk Confocal System
Fast multichannel confocal imaging is realized by combining spinning disk confocal scanner with emission splitter, with stimulation additionally provided using a galvo-based system.
Components
- ECLIPSE Ti-E inverted microscope with Perfect Focus System (PFS)
- Yokogawa CSU-21 spinning disk confocal
- Andor TuCam two-camera adapter for simultaneous two-color imaging
- Hamamatsu ORCA-Flash4.0 V2+ sCMOS camera
- Hamamatsu ImagEM EMCCD camera
Large format DS-Ri2 color CMOS camera
- Mad City Labs Nano-Z series Z-axis piezo stage
- Okolab stage-top incubation system
- 4-line laser unit (405nm, 488nm, 561nm, 640nm)
- Bruker Mini-Scanner galvo-based stimulation system
- Anton-paar 502 Rheometer
NIS-Elements software

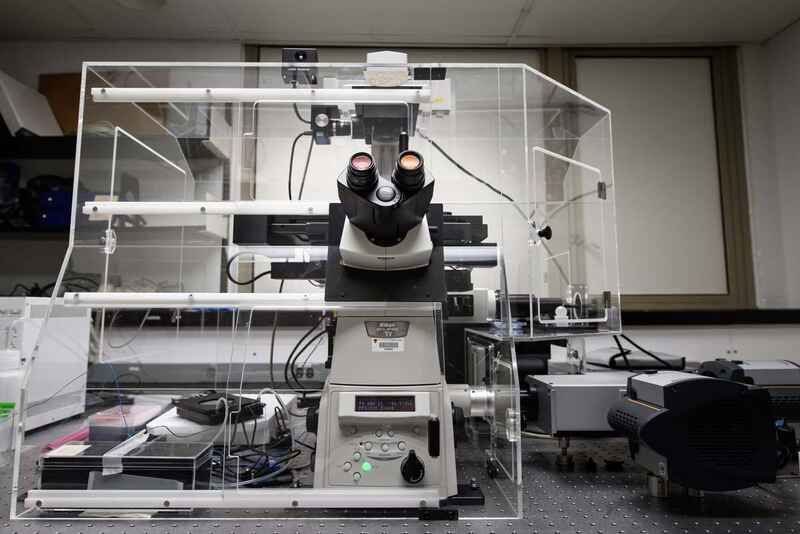

N-SIM Super-Resolution System
This N-SIM structured illumination super-resolution system beats the diffraction limit of resolution by a factor of two and features emission splitter for simultaneous two-color imaging.
Components
- ECLIPSE Ti-E inverted microscope with Perfect Focus System (PFS)
- N-SIM super-resolution structured illumination microscopy system
- Two-camera emission splitter for simultaneous 2-color imaging
- 2x Andor iXon 897 EMCCD camera
- Tokai Hit stage-top incubation system
NIS-Elements software

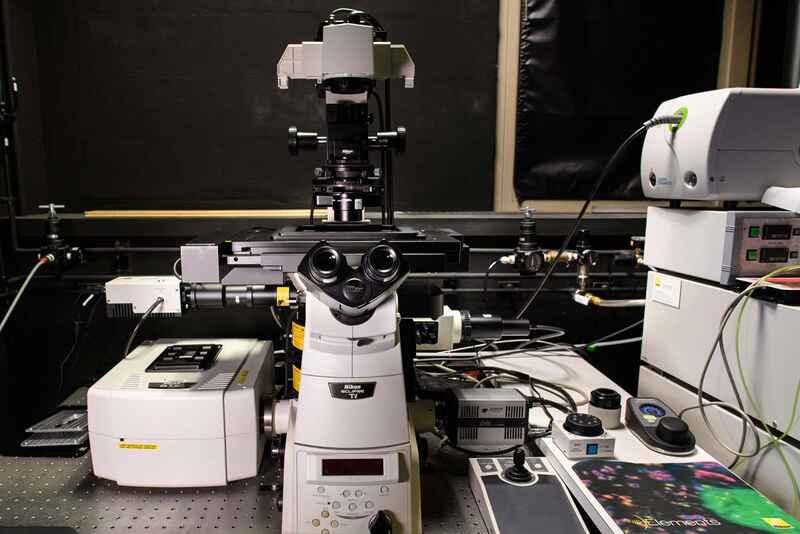

A1Rsi Resonant-Scanning Confocal System
This A1R HD resonant scanning confocal system features both a spectral detector for linear unmixing of multiple sisgnals and DMD for patterned stimulation, perfect for applications such as optogenetics.
Components
- ECLIPSE Ti-E inverted microscope with Perfect Focus System (PFS)
A1R HD high-definition resonant scanning confocal system
- A1-DUS 32-channel spectral detector
LUN-4 4-line laser unit (405 nm, 488 nm, 561 nm, 640 nm)
- DU4G GaAsP 4-channel confocal detector
- Mad City Labs Nano-Z series Z-axis piezo stage
- Warner Instruments incubation system
- Mightex Polygon400 DMD for patterned illumination (Lumencor AURA II light engine)
- Andor Zyla 4.2 sCMOS camera
NIS-Elements software

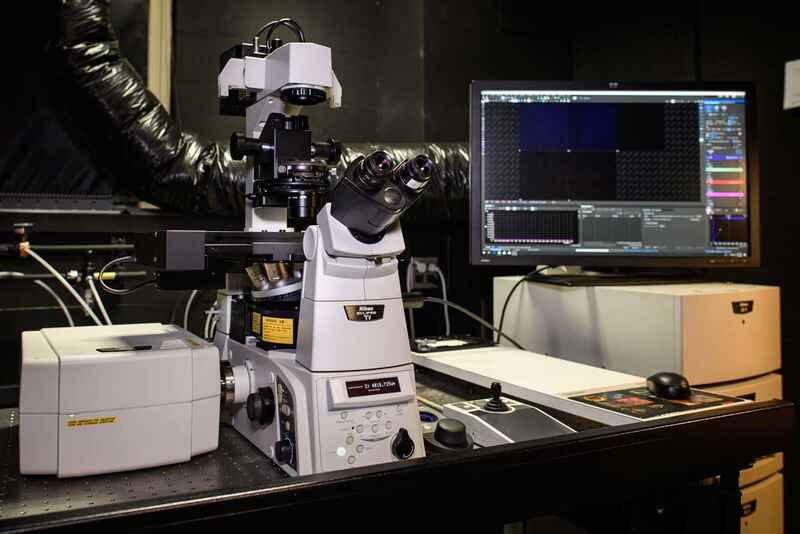

Go-to A1 point scanning confocal system configured on Ti-E inverted microscope, great for a wide variety of applications.
Components
- ECLIPSE Ti-E inverted microscope with Perfect Focus System (PFS)
- 4-line laser unit (405nm, 488nm, 561nm, 633nm)
- DU4G GaAsP 4-channel confocal detector
NIS-Elements software

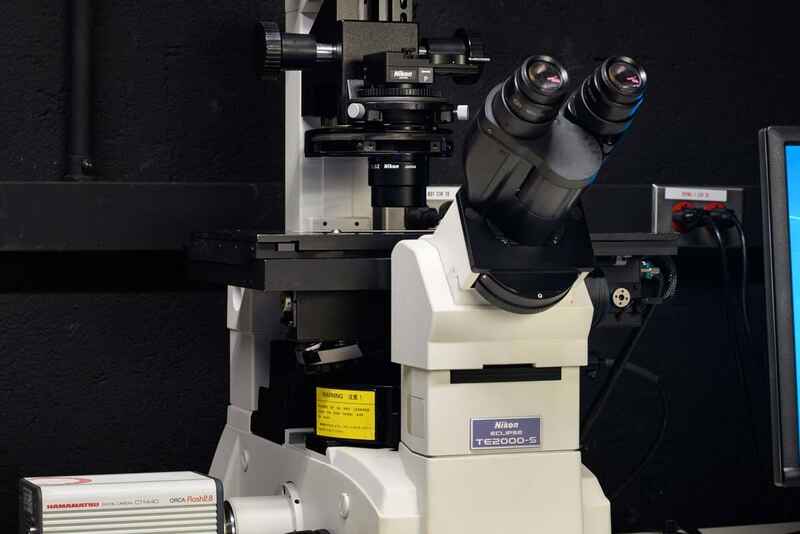

Inverted Widefield Microscope System
Inverted widefield system configured on TE2000 for routine applications.
Components
- TE2000 inverted microscope
- Hamamatsu ORCA-ER CCD camera
