Objective for IMSI

Nikon Europe B.V. and all Nikon subsidiaries in Europe are closely monitoring the situation with COVID-19 (coronavirus) and following the guidance of each local health authorities. Learn more about the measures we have put in place.

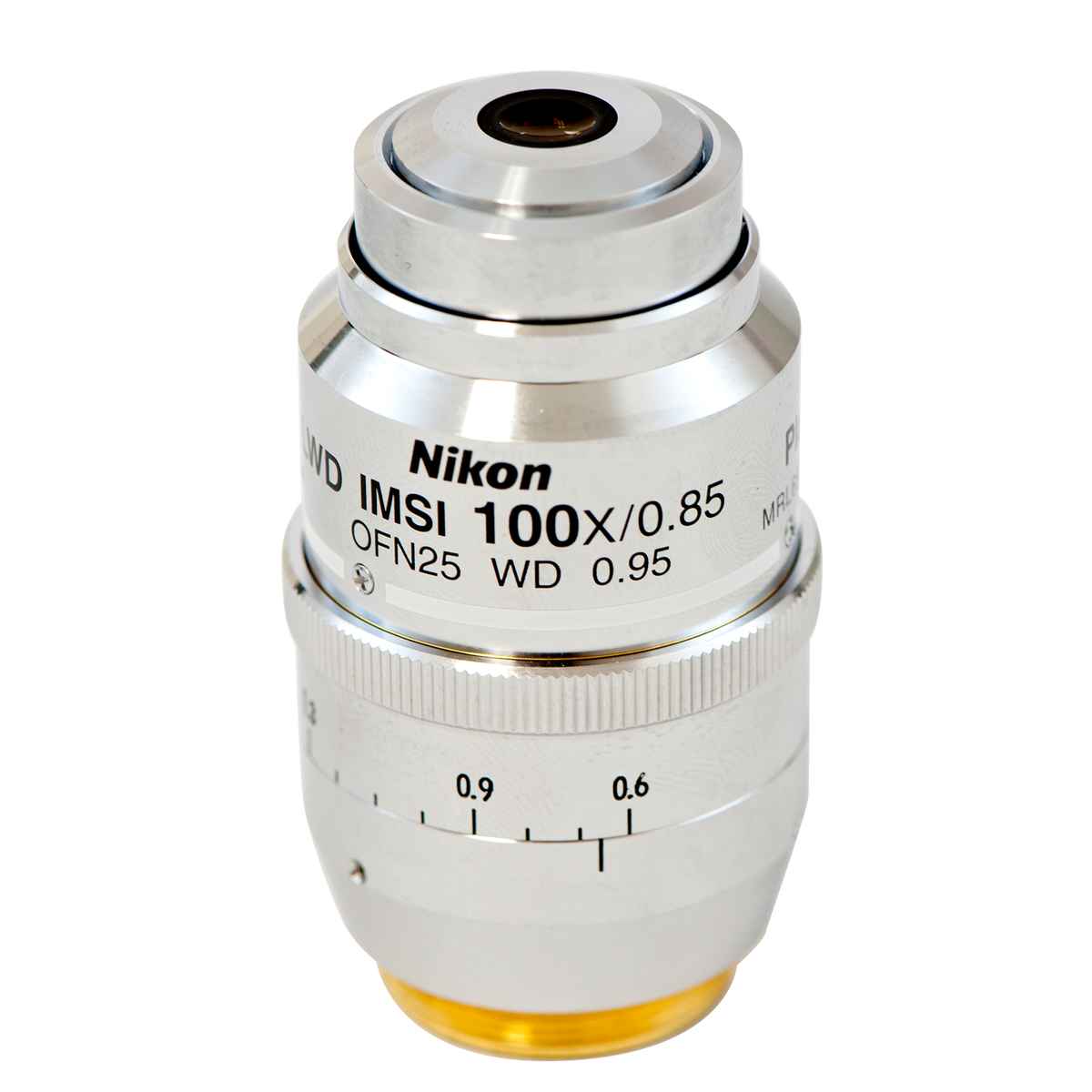

Dry objective lens providing high magnification and long working distance, an important combination for intracytoplasmic morphologically selected sperm injection (IMSI).

Intracytoplasmic morphologically selected sperm injection (IMSI) is a technique in the in vitro fertilization (IVF) field used to select the healthiest sperm for intracytoplasmic sperm injection (ICSI). This level of morphological scrutiny requires very high magnification and sharp contrast. Nikon’s CFI Plan LWD IMSI 100X dry objective features a correction collar, DIC compatibility, and can be used with the same polarizer as Nikon’s NAMC optics, which makes switching between multiple objectives and contrast techniques simple.


Model Dimensions Transmittance NA W.D. (mm) Cover glass thickness Correction ring Observation
CFI Plan Achromat LWD IMSI 100XC Diagram Graph 0.85 1.30 -0.95 (0.90 with cover glass thickness of 0.9 mm) 0.60 - 1.30 BF, DF (Oil), DIC, POL, FL (visible light)

BF: Brightfield
DF: Darkfield
DIC: Differential Interference Contrast
POL: Simple Polarizing
FL: Fluorescence
