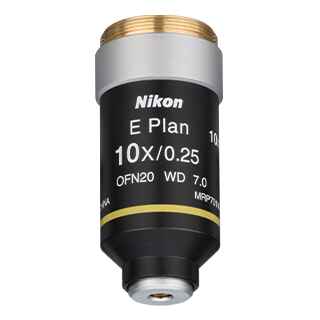

CFI E Plan Achromat 10X |
|
---|---|
Material Number | MRP70100 |
Type | Plan Achromat |
Primary Technique | Brightfield |
Immersion | Air |
Magnification | 10X |
Numerical Aperture | 0.25 |
Working Distance | 7 |
Cover Glass Thickness | 0–0.17 |
CFI E Plan Achromat 10X |
|
---|---|
Diagram (mm) |
|
Transmittance Graph |
CFI E Plan Achromat 10X |
|
---|---|
Brightfield | suitable |
Darkfield | darkfield slider |
DIC | |
Fluorescence (visible) | suitable |
Fluorescence (UV) | |
Fluorescence (NIR) | |
Polarizing | possible but not recommended |
Polarizing Type | Simple POL |
Phase Contrast Ring | |
Phase Contrast Type |
CFI E Plan Achromat 10X |
|
---|---|
Correction Collar | |
Spring Loaded | |
Iris | |
Long Working Distance | |
Ti2-E PFS Compatible |
CFI E Plan Achromat 10X |
|
---|---|
Asbestos | |
Clear Tissue | |
Clinical / Laboratory | ✓ |
Confocal | |
Education | ✓ |
Laser Trapping / Tweezing | |
Multiphoton | |
SIM | |
STORM | |
Research | |
TIRF | |
Tissue Culture |
