Objective Selector
Objective Comparison

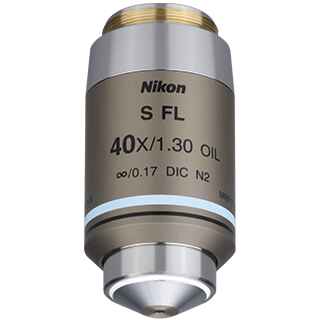

| CFI Super Fluor 40X Oil |
|
|---|---|
 |
|
| Material Number | MRF01401 |
| Type | Super Fluor |
| Primary Technique | Brightfield |
| Immersion | Oil |
| Magnification | 40X |
| Numerical Aperture | 1.3 |
| Working Distance | 0.19 |
| Cover Glass Thickness | 0.17 |
| CFI Super Fluor 40X Oil |
|
|---|---|
| Diagram (mm) |
 |
| Transmittance Graph |  |
| CFI Super Fluor 40X Oil |
|
|---|---|
| Brightfield | recommended for best results |
| Darkfield | |
| DIC | suitable |
| Fluorescence (visible) | recommended for best results |
| Fluorescence (UV) | high transmittance with an ultraviolet wavelength range of up to 340nm |
| Fluorescence (NIR) | |
| Polarizing | possible but not recommended |
| Polarizing Type | Simple POL |
| Phase Contrast Ring | EXT PH3 |
| Phase Contrast Type |
| CFI Super Fluor 40X Oil |
|
|---|---|
| Correction Collar | |
| Spring Loaded | ✓ with stopper |
| Iris | |
| Long Working Distance | |
| Ti2-E PFS Compatible | ✓ |
| CFI Super Fluor 40X Oil |
|
|---|---|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | |
| Confocal | |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | |
| Tissue Culture |
