Objective Selector

Objective Comparison

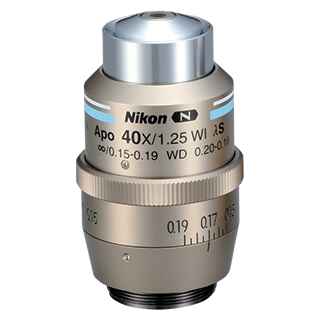

CFI Apo
Lambda S 40XC WI
Material Number MRD77400
Type Apochromat
Primary Technique Confocal
Immersion Water Immersion
Magnification 40X
Numerical Aperture 1.25
Working Distance 0.2–0.16
Cover Glass Thickness 0.15–0.19
CFI Apo
Lambda S 40XC WI
Diagram
(mm)
Transmittance Graph
CFI Apo
Lambda S 40XC WI
Brightfield recommended for best results
Darkfield
DIC suitable
Fluorescence (visible) recommended for best results
Fluorescence (UV) recommended for best results
Fluorescence (NIR)
Polarizing suitable
Polarizing Type Simple POL
Phase Contrast Ring EXT PH3
Phase Contrast Type
CFI Apo
Lambda S 40XC WI
Correction Collar
Spring Loaded
Iris
Long Working Distance
Ti2-E PFS Compatible
CFI Apo
Lambda S 40XC WI
Asbestos
Clear Tissue
Clinical / Laboratory
Confocal
Education
Laser Trapping / Tweezing
Multiphoton
SIM
STORM
Research
TIRF
Tissue Culture
