Objective Selector
Objective Comparison

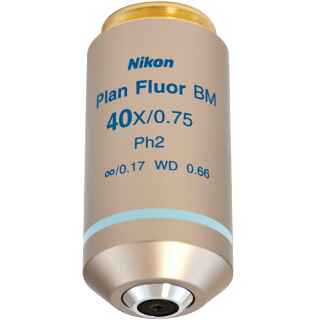

| CFI Plan Fluor BM 40X |
|
|---|---|
 |
|
| Material Number | MRH99425 |
| Type | Plan Fluor |
| Primary Technique | Phase Contrast |
| Immersion | Air |
| Magnification | 40X |
| Numerical Aperture | 0.75 |
| Working Distance | 0.66 |
| Cover Glass Thickness | 0.17 |
| CFI Plan Fluor BM 40X |
|
|---|---|
| Diagram (mm) |
 |
| Transmittance Graph |  |
| CFI Plan Fluor BM 40X |
|
|---|---|
| Brightfield | suitable |
| Darkfield | universal condenser (dry) and darkfield ring, darkfield condenser (dry/oil) |
| DIC | |
| Fluorescence (visible) | suitable |
| Fluorescence (UV) | suitable |
| Fluorescence (NIR) | |
| Polarizing | |
| Polarizing Type | |
| Phase Contrast Ring | ◎PH2 |
| Phase Contrast Type | BM |
| CFI Plan Fluor BM 40X |
|
|---|---|
| Correction Collar | |
| Spring Loaded | ✓ |
| Iris | |
| Long Working Distance | |
| Ti2-E PFS Compatible |
| CFI Plan Fluor BM 40X |
|
|---|---|
| Asbestos | ✓ |
| Clear Tissue | |
| Clinical / Laboratory | ✓ |
| Confocal | |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | |
| SIM | |
| STORM | |
| Research | |
| TIRF | |
| Tissue Culture |
