Objective Selector
Objective Comparison

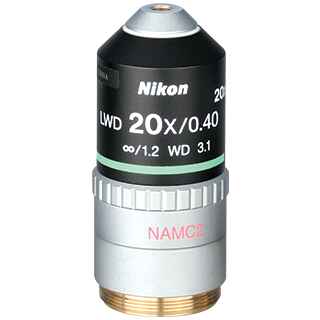

CFI Achro LWD NAMC 20XF |
|
---|---|
Material Number | MRP66205 |
Type | Achromat |
Primary Technique | Advanced Modulation Contrast |
Immersion | Air |
Magnification | 20X |
Numerical Aperture | 0.4 |
Working Distance | 3.1 |
Cover Glass Thickness | 1.2 |
CFI Achro LWD NAMC 20XF |
|
---|---|
Diagram (mm) |
|
Transmittance Graph |
CFI Achro LWD NAMC 20XF |
|
---|---|
Brightfield | suitable |
Darkfield | |
DIC | |
Fluorescence (visible) | possible but not recommended |
Fluorescence (UV) | |
Fluorescence (NIR) | |
Polarizing | |
Polarizing Type | |
Phase Contrast Ring | |
Phase Contrast Type |
CFI Achro LWD NAMC 20XF |
|
---|---|
Correction Collar | |
Spring Loaded | |
Iris | |
Long Working Distance | ✓ |
Ti2-E PFS Compatible |
CFI Achro LWD NAMC 20XF |
|
---|---|
Asbestos | |
Clear Tissue | |
Clinical / Laboratory | ✓ |
Confocal | |
Education | |
Laser Trapping / Tweezing | |
Multiphoton | |
SIM | |
STORM | |
Research | |
TIRF | |
Tissue Culture |
