Objective Selector
Objective Comparison

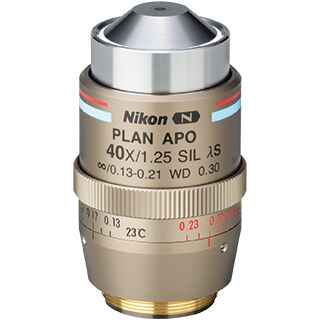

| CFI Plan Apo Lambda S 40XC Sil |
|
|---|---|
 |
|
| Material Number | MRD73400 |
| Type | Plan Apochromat |
| Primary Technique | Confocal |
| Immersion | Silicone Oil |
| Magnification | 40X |
| Numerical Aperture | 1.25 |
| Working Distance | 0.3 |
| Cover Glass Thickness | 0.13–0.21 |
| CFI Plan Apo Lambda S 40XC Sil |
|
|---|---|
| Diagram (mm) |
 |

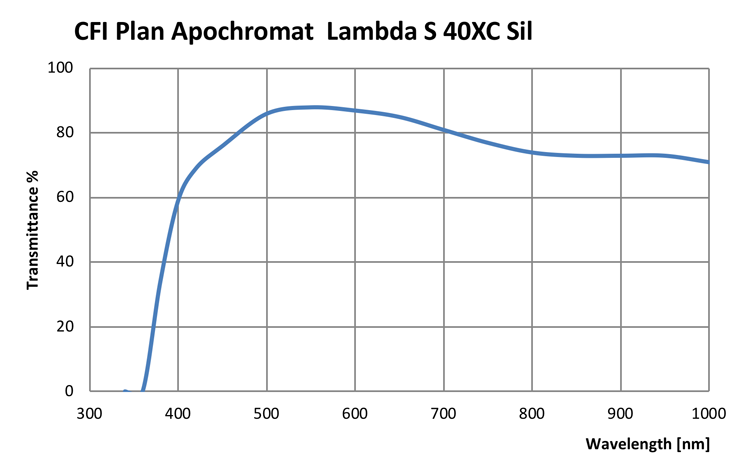

| Transmittance Graph |  |
| CFI Plan Apo Lambda S 40XC Sil |
|
|---|---|
| Brightfield | recommended for best results |
| Darkfield | darkfield condenser (oil) |
| DIC | suitable |
| Fluorescence (visible) | recommended for best results |
| Fluorescence (UV) | recommended for best results |
| Fluorescence (NIR) | recommended for best results |
| Polarizing | suitable |
| Polarizing Type | Simple POL |
| Phase Contrast Ring | |
| Phase Contrast Type |
| CFI Plan Apo Lambda S 40XC Sil |
|
|---|---|
| Correction Collar | ✓ |
| Spring Loaded | |
| Iris | |
| Long Working Distance | |
| Ti2-E PFS Compatible | ✓ |
| CFI Plan Apo Lambda S 40XC Sil |
|
|---|---|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | |
| Confocal | ✓ |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | ✓ |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | |
| Tissue Culture |
