Objective Selector

Objective Comparison

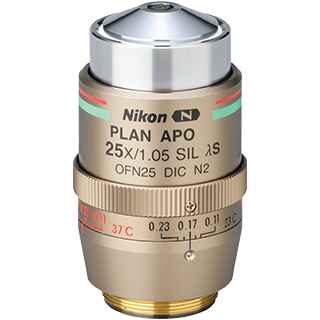

CFI Plan Apo
Lambda S 25XC Sil
Material Number MRD73250
Type Plan Apochromat
Primary Technique Confocal
Immersion Silicone Oil
Magnification 25X
Numerical Aperture 1.05
Working Distance 0.55
Cover Glass Thickness 0.11–0.23
CFI Plan Apo
Lambda S 25XC Sil
Diagram
(mm)
Transmittance Graph
CFI Plan Apo
Lambda S 25XC Sil
Brightfield recommended for best results
Darkfield darkfield condenser (oil)
DIC suitable
Fluorescence (visible) recommended for best results
Fluorescence (UV) recommended for best results
Fluorescence (NIR) recommended for best results
Polarizing suitable
Polarizing Type Simple POL
Phase Contrast Ring
Phase Contrast Type
CFI Plan Apo
Lambda S 25XC Sil
Correction Collar
Spring Loaded
Iris
Long Working Distance
Ti2-E PFS Compatible
CFI Plan Apo
Lambda S 25XC Sil
Asbestos
Clear Tissue
Clinical / Laboratory
Confocal
Education
Laser Trapping / Tweezing
Multiphoton
SIM
STORM
Research
TIRF
Tissue Culture
