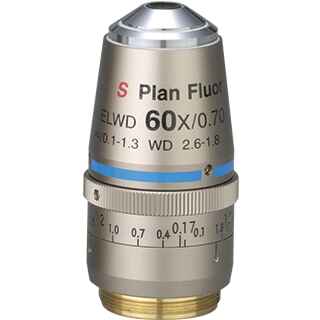

CFI S Plan Fluor ELWD 60XC |
|
---|---|
Material Number | MRH08630 |
Type | Super Plan Fluor |
Primary Technique | Brightfield |
Immersion | Air |
Magnification | 60X |
Numerical Aperture | 0.7 |
Working Distance | 2.6–1.8 |
Cover Glass Thickness | 0.1–1.3 |
CFI S Plan Fluor ELWD 60XC |
|
---|---|
Diagram (mm) |
|
Transmittance Graph |
CFI S Plan Fluor ELWD 60XC |
|
---|---|
Brightfield | recommended for best results |
Darkfield | universal condenser (dry) and darkfield ring, darkfield condenser (dry/oil) |
DIC | suitable |
Fluorescence (visible) | recommended for best results |
Fluorescence (UV) | recommended for best results |
Fluorescence (NIR) | |
Polarizing | suitable |
Polarizing Type | Simple POL |
Phase Contrast Ring | |
Phase Contrast Type |
CFI S Plan Fluor ELWD 60XC |
|
---|---|
Correction Collar | ✓ |
Spring Loaded | |
Iris | |
Long Working Distance | ✓ |
Ti2-E PFS Compatible |
CFI S Plan Fluor ELWD 60XC |
|
---|---|
Asbestos | |
Clear Tissue | |
Clinical / Laboratory | |
Confocal | |
Education | |
Laser Trapping / Tweezing | |
Multiphoton | |
SIM | |
STORM | |
Research | ✓ |
TIRF | |
Tissue Culture | ✓ |
