Objective Comparison

CFI Plan Apochromat
Lambda D 10X
Material Number MRD70170
Type Plan Apochromat
Primary Technique Brightfield
Immersion Air
Magnification 10X
Numerical Aperture 0.45
Working Distance 4
Cover Glass Thickness 0.17
CFI Plan Apochromat
Lambda D 10X

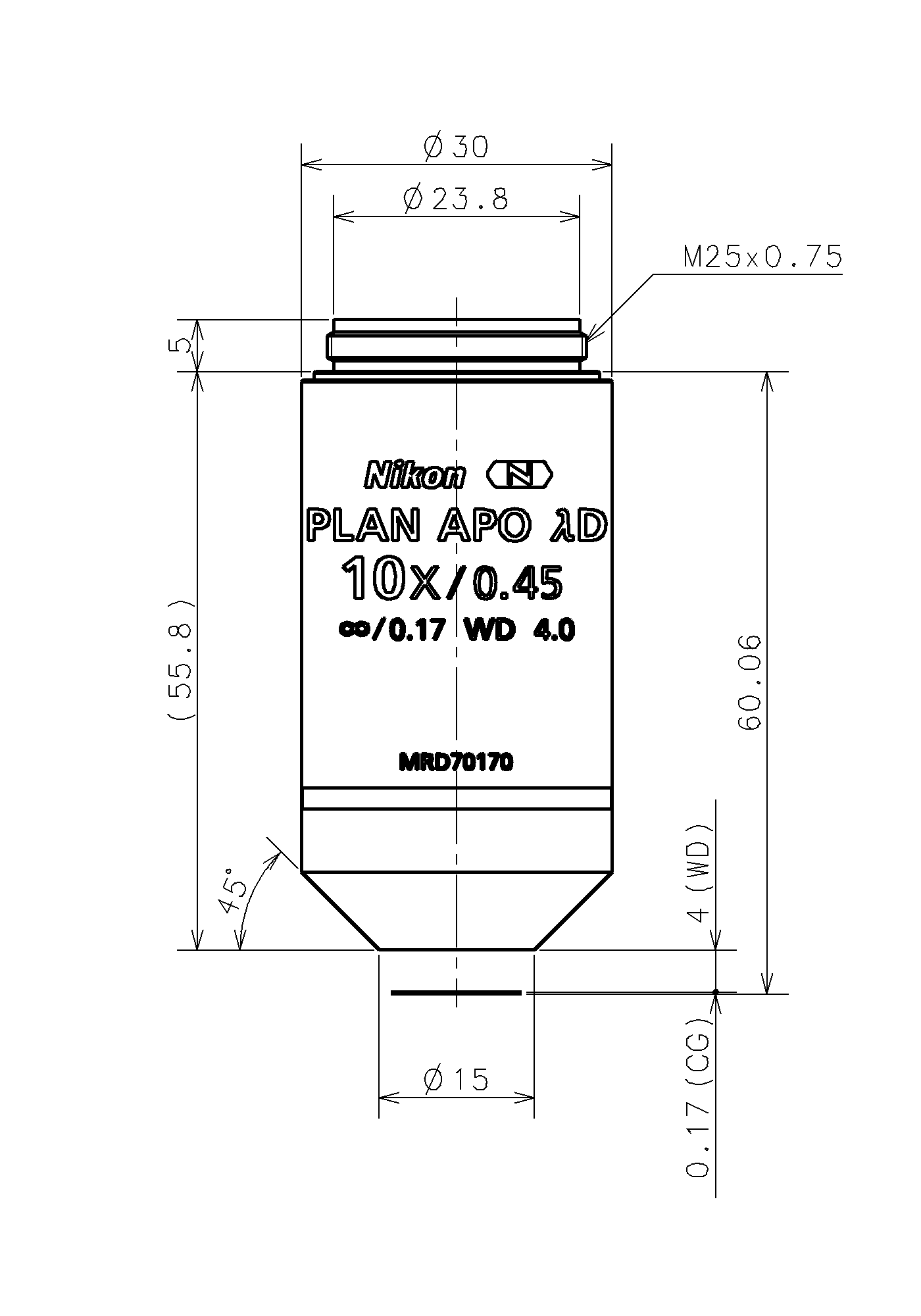

Diagram
(mm)

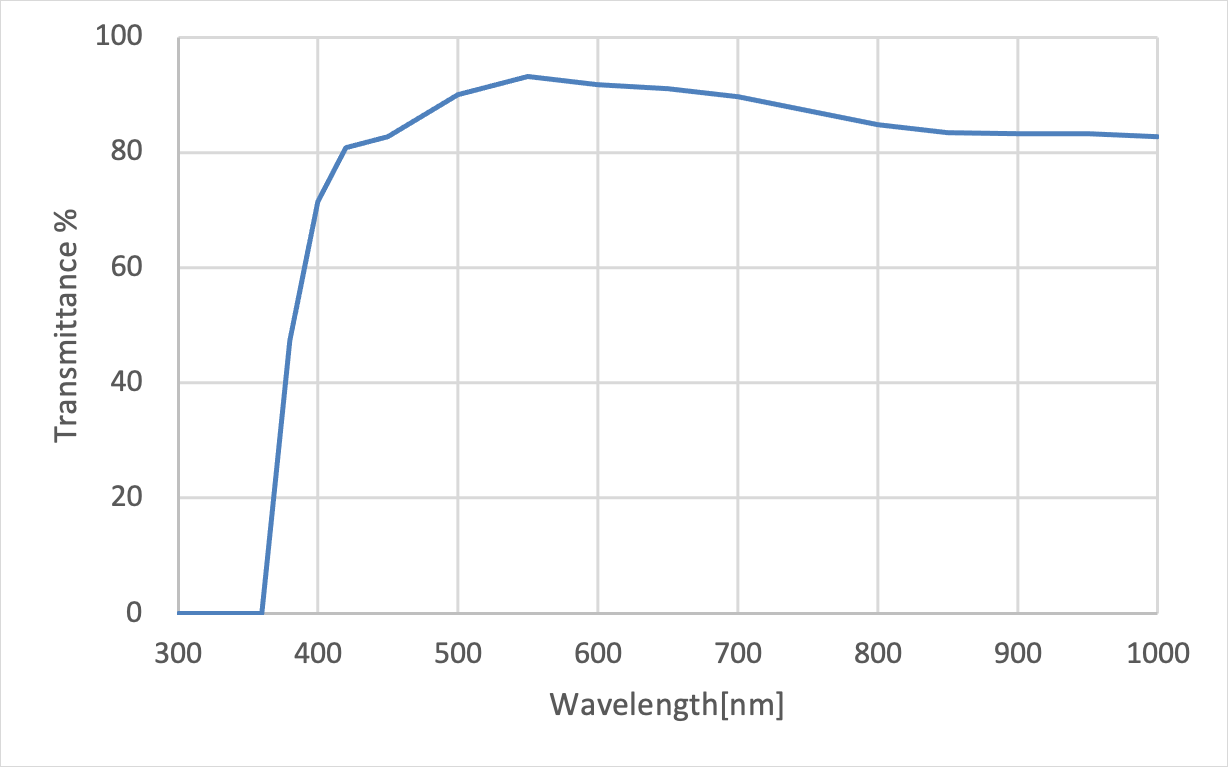

Transmittance Graph
CFI Plan Apochromat
Lambda D 10X
Brightfield recommended for best results
Darkfield universal condenser (dry) and darkfield ring
DIC recommended for best results
Fluorescence (visible) recommended for best results
Fluorescence (UV)
Fluorescence (NIR) recommended for best results
Polarizing suitable
Polarizing Type Simple POL
Phase Contrast Ring
Phase Contrast Type
CFI Plan Apochromat
Lambda D 10X
Correction Collar
Spring Loaded
Iris
Long Working Distance
Ti2-E PFS Compatible ✓
CFI Plan Apochromat
Lambda D 10X
Asbestos
Clear Tissue
Clinical / Laboratory ✓
Confocal ✓
Education
Laser Trapping / Tweezing
Multiphoton ✓
SIM
STORM
Research ✓
TIRF
Tissue Culture
