CFI Achro LWD P 20X |
|
---|---|
Material Number | MRP50202 |
Type | Achromat |
Primary Technique | Polarized Light |
Immersion | Air |
Magnification | 20X |
Numerical Aperture | 0.4 |
Working Distance | 3.9 |
Cover Glass Thickness | 0.17 |
CFI Achro LWD P 20X |
|
---|---|
Diagram (mm) |
|

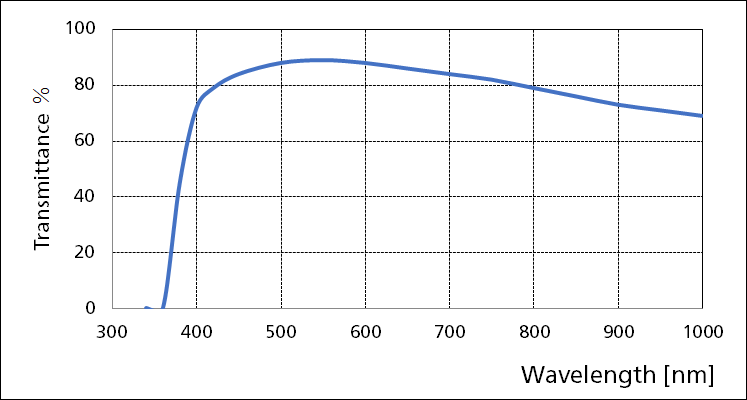

Transmittance Graph |
CFI Achro LWD P 20X |
|
---|---|
Brightfield | recommended for best results |
Darkfield | universal condenser (dry) and darkfield ring, darkfield condenser (dry/oil) |
DIC | |
Fluorescence (visible) | suitable |
Fluorescence (UV) | |
Fluorescence (NIR) | |
Polarizing | retardation measurement is possible with a polarizing microscope |
Polarizing Type | Quantified POL with coverslip |
Phase Contrast Ring | |
Phase Contrast Type |
CFI Achro LWD P 20X |
|
---|---|
Correction Collar | |
Spring Loaded | |
Iris | |
Long Working Distance | ✓ |
Ti2-E PFS Compatible |
CFI Achro LWD P 20X |
|
---|---|
Asbestos | |
Clear Tissue | |
Clinical / Laboratory | |
Confocal | |
Education | ✓ |
Laser Trapping / Tweezing | |
Multiphoton | |
SIM | |
STORM | |
Research | ✓ |
TIRF | |
Tissue Culture |
