CFI Achro
P 10X
Material Number MRP50102
Type Achromat
Primary Technique Polarized Light
Immersion Air
Magnification 10X
Numerical Aperture 0.25
Working Distance 7
Cover Glass Thickness
CFI Achro
P 10X
Diagram
(mm)

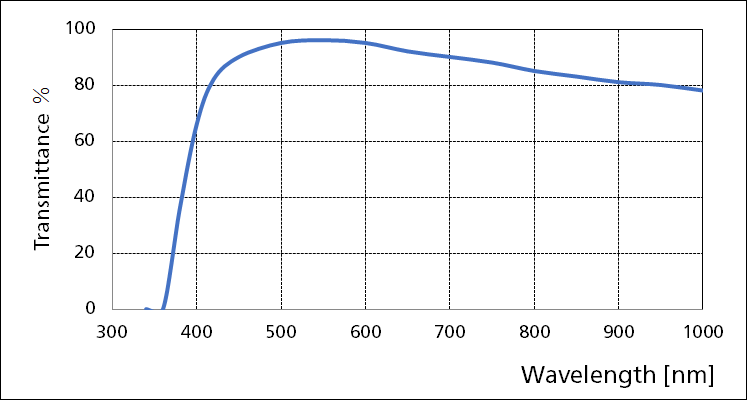

Transmittance Graph
CFI Achro
P 10X
Brightfield recommended for best results
Darkfield universal condenser (dry) and darkfield ring
DIC
Fluorescence (visible) suitable
Fluorescence (UV)
Fluorescence (NIR)
Polarizing retardation measurement is possible with a polarizing microscope
Polarizing Type Quantified POL without coverslip
Phase Contrast Ring
Phase Contrast Type
CFI Achro
P 10X
Correction Collar
Spring Loaded
Iris
Long Working Distance
Ti2-E PFS Compatible
CFI Achro
P 10X
Asbestos
Clear Tissue
Clinical / Laboratory
Confocal
Education
Laser Trapping / Tweezing
Multiphoton
SIM
STORM
Research
TIRF
Tissue Culture
