DS-Ri2
Mikroskop Kamera
Eingestellt
Spezifikationen
| Image sensor | Nikon FX-format, Color CMOS senser / Size: 36.0x23.9mm Effective 16.25 megapixels |
|---|---|
| Recordable pixels | 4908x3264 pixel (full-pixel), 1636x1088 pixel (3x3 pixel averaging) |
| ISO sensitivity (recommended exposure index) | Standard: equivalent to ISO 200 (Selectable from ISO200 to 12800 equivalent) |
| Live display mode | Full-pixel 4908x3264 pixel (max 6fps) / 3x3 pixel averaging 1636x1088 (max 45fps) |
| Lens mount | F mount |
| Exposure time | 100 µsec to 120 sec |
| Image format | BMP, TIFF, JPEG, etc., selectable in NIS-Elements |
| Interface | USB3.0 (computer control connection) x1, External sync input/output x1 |
| Power supply | AC100-240V 50/60Hz |
| Power consumption | 13W |
| Dimensions | 105 (W) x 134 (D) x 153 (H) mm |
| Weight | 1200g |
| Operating environment | 0-40°C, 60% RH max. (without condensation) |

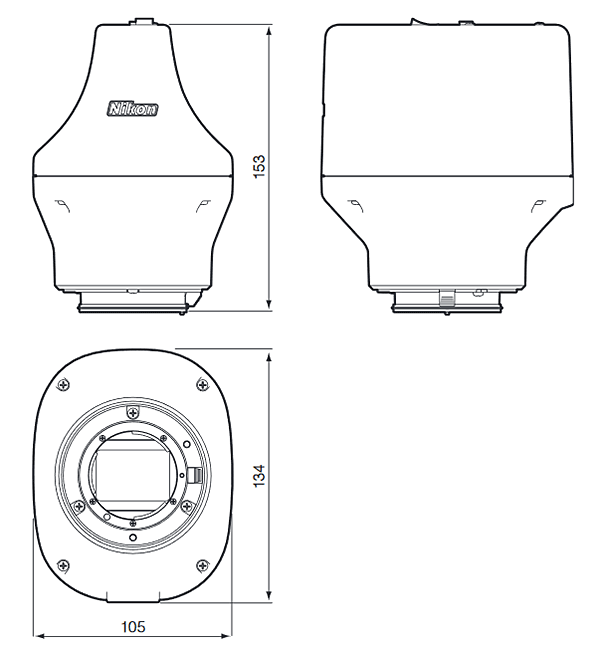

Diagrams
Produktbroschüre
