ECLIPSE FN1

Fixed Stage Microscope for Electrophysiological Research

Specifications

Eclipse FN1
Optical systemCFI60 and CFI75 infinity optical system
Main bodyI-shaped, external power supply
FocusingVia nosepiece up/down movement
Manual coaxial coarse/fine focus knobs (on both sides)
NosepieceFN-S2N Sliding Nosepiece (for CFI60 objectives)
Front/back 2-position; DIC prism attachable
FN-MN-N Single Objective Holder (for CFI75 objective)
1-position; DIC prism attachable
ObjectivesCFI Plan 4X, NA: 0.10, W.D.: 30.0 (*1)
CFI Plan Fluor 10X W, NA: 0.30, W.D.: 3.5
CFI75 LWD 16X W, NA: 0.80, W.D.: 3.0
CFI Apochromat NIR 40X W, NA: 0.80, W.D.: 3.5
CFI Apochromat NIR 60X W, NA: 1.00, W.D.: 2.8
CFI Plan 100XC W, NA: 1.10, W.D.: 2.5, with correction ring
LWD condenserUniversal turret type
NA: 0.78, W.D.: 7.2mm
DIC and Oblique Light observations possible
Eyepiece10x, F.O.V.: 22 UW10x, F.O.V.: 25
Eyepiece tubesC-TE2 Ergonomic Binocular Tube (Bino 100%, Bino : DSC port = 50 : 50)
(DSC port cannot be used with variable magnification double port)
C-TF Trinocular Tube F (Bino : Photo = 100 : 0, 0 : 100)
C-TT Trinocular Tube T (Bino : Photo = 100 : 0, 20 : 80, 0 : 100)
LV-TI3 Trinocular Tube ESD (Bino : Photo = 100 : 0, 0 : 100)
LV-TT2 Tilting Trinocular Tube (Bino : Photo = 100 : 0, 20 : 80, 0 : 100)
StageFN-3PS2 FN1 Rectangular Stage (3-plate mechanical stage)
Stroke: 30mm (X, Y)
Light sourceIntensilight HG Precentered Fiber Illuminator: 130W long-life mercury lamp
Hg Lamphouse: 100W mercury lamp
FN-LH Precentered Lamphouse: 12V-100W long-life halogen lamp
Operating conditionsTemperature: +10ºC to +40ºC
Humidity: 85% RH max. (no condensation)
Weight (main body)Approx. 12kg

*1 Auxiliary lens is required.

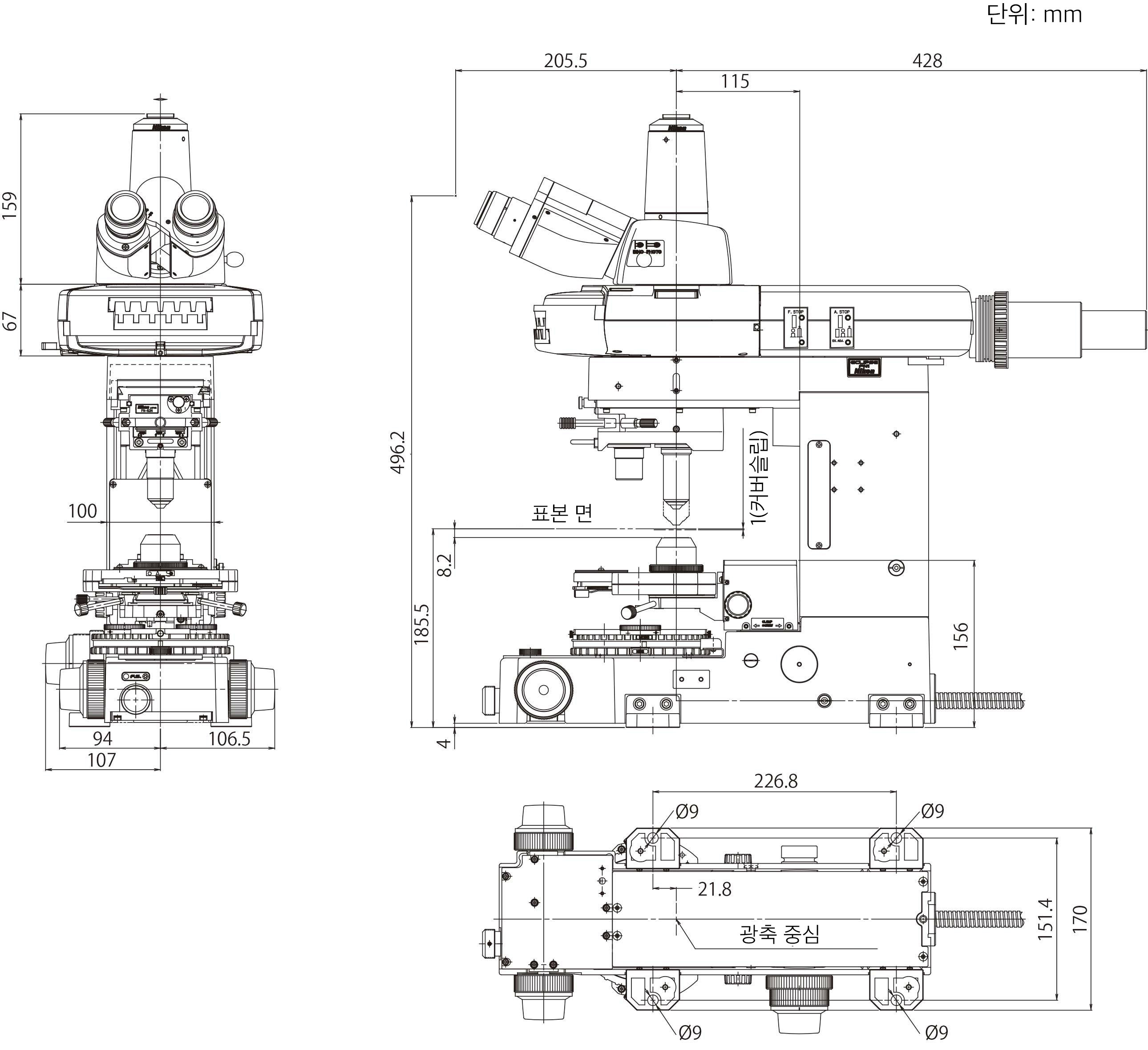

Dimensions
