Objective Comparison

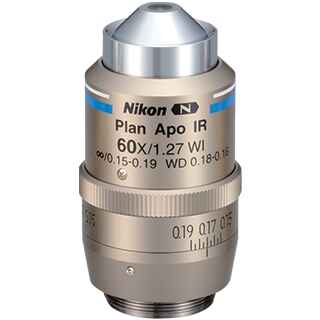

CFI Plan Apo
IR 60XC WI
Material Number MRD07650
Type Plan Apochromat
Primary Technique Brightfield
Immersion Water Immersion
Magnification 60X
Numerical Aperture 1.27
Working Distance 0.18–0.16
Cover Glass Thickness 0.15–0.19
CFI Plan Apo
IR 60XC WI
Diagram
(mm)
Transmittance Graph
CFI Plan Apo
IR 60XC WI
Brightfield recommended for best results
Darkfield
DIC suitable
Fluorescence (visible) recommended for best results
Fluorescence (UV) suitable
Fluorescence (NIR) recommended for best results
Polarizing suitable
Polarizing Type Simple POL
Phase Contrast Ring EXT PH3
Phase Contrast Type
CFI Plan Apo
IR 60XC WI
Correction Collar ✓
Spring Loaded ✓
Iris
Long Working Distance
Ti2-E PFS Compatible ✓
CFI Plan Apo
IR 60XC WI
Asbestos
Clear Tissue
Clinical / Laboratory
Confocal ✓
Education
Laser Trapping / Tweezing ✓
Multiphoton ✓
SIM ✓
STORM
Research ✓
TIRF
Tissue Culture
