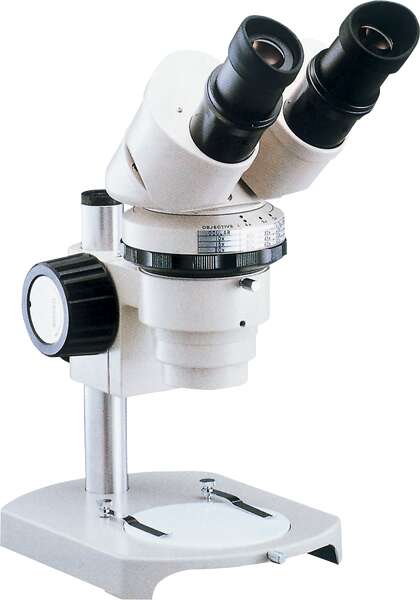

High-resolution optics ideal for inspection, assembly, and measurement
- Compact design with horizontally positioned zooming ring (rotation: 90°)
- Eyepiece inclination of 45° for comfortable observation
Specifications
| SMZ | |
|---|---|
| Optical system | Greenough type (zooming type) |
| Zooming ratio | 5 : 1 |
| Zooming range | 0.8–4x |
| Total magnification | 4–120x (Depending on eyepiece and auxiliary objective used.) |
| Tube | Eyepiece inclination: 45° Interpupillary distance adjustment: 56–75 mm |
| Eyepieces (with diopter adjustment) | SM E10xA (F.N. 23, standard), SM E15xA (F.N. 14), SM 20xB (F.N. 12), C-W30x (F.N. 7) |
| Auxiliary objectives | AL5 (0.5x), AL7 (0.7x) |
| Working distance | 77.5 mm (with standard configuration) |
| Weight (approx.) | 1.6 kg (body), 1.9 kg (stand) |
