Set up

Insert the power plug into the power outlet

POINT

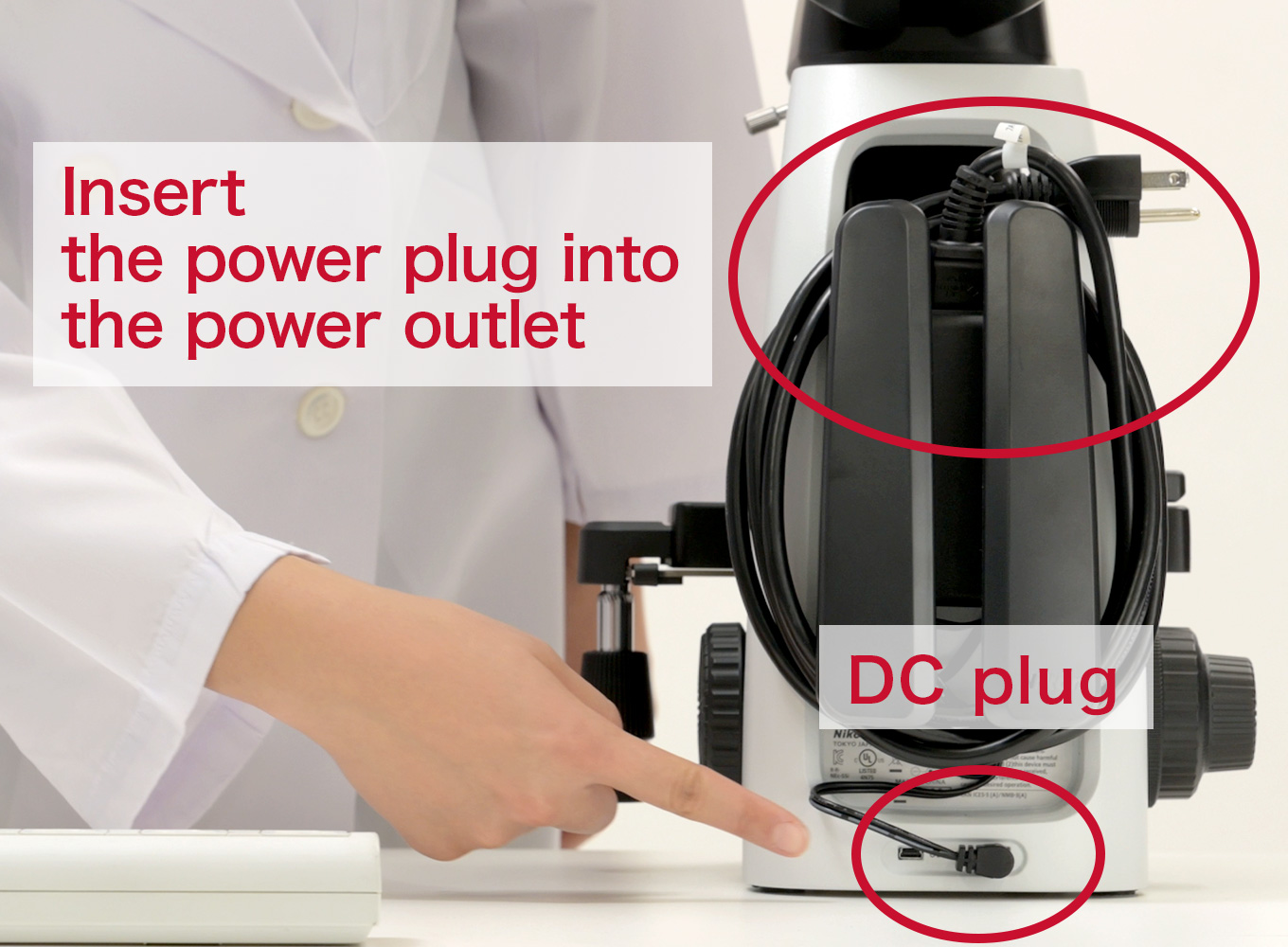

Insert the power plug into the power outlet — Insert the DC plug of the AC adapter into the DC inlet of the main body, and connect the power cord plug to the outlet.

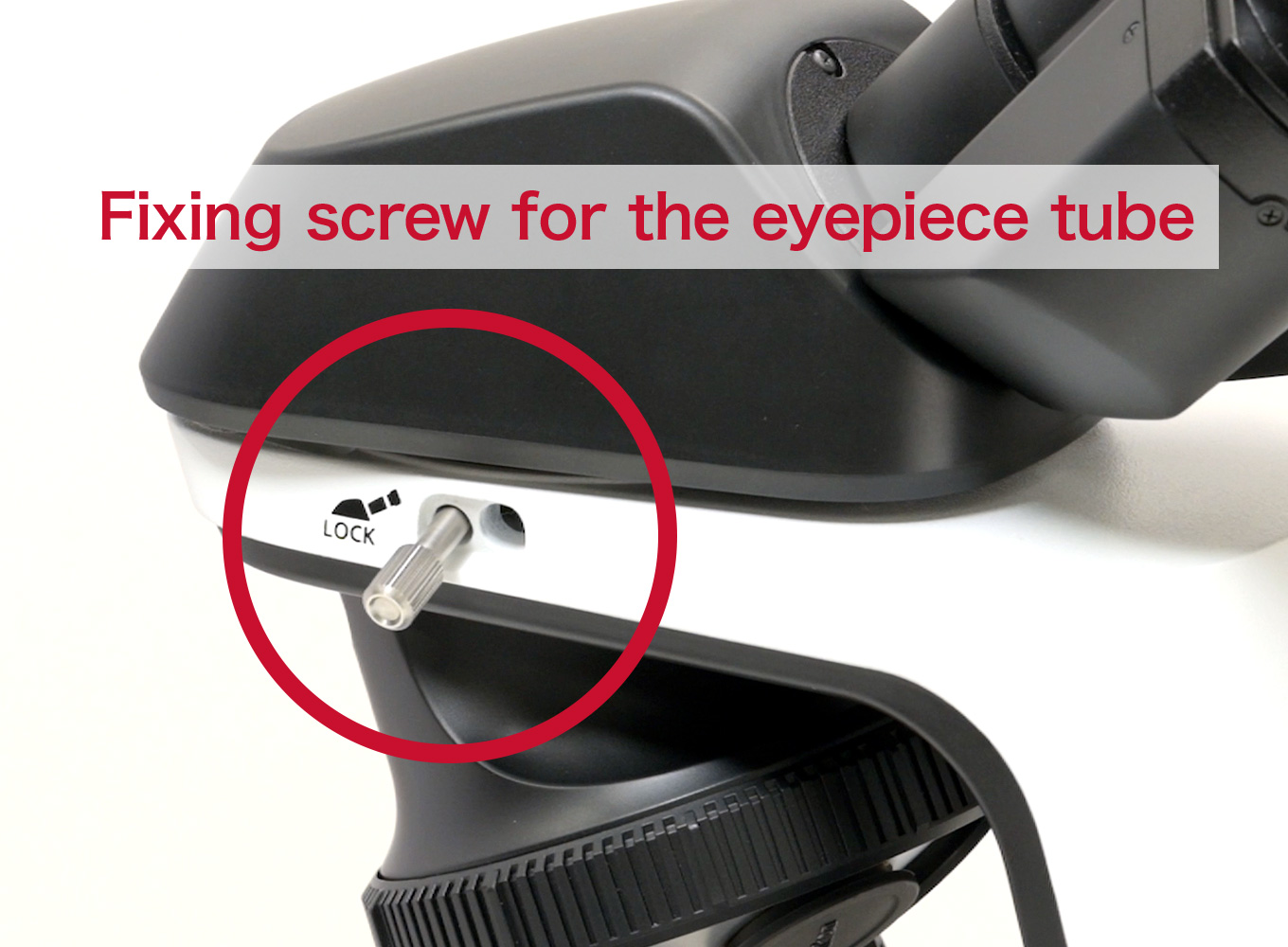

Loosen fixing screw for the eyepiece tube by turning it a few times. Turn the binocular eyepiece tube to confirm the eyepiece is being in the front side, and tighten the fixing screw for the eyepiece tube.
