Lamp lighting and adjusting the brightness
Adjust the brightness using the brightness control knob

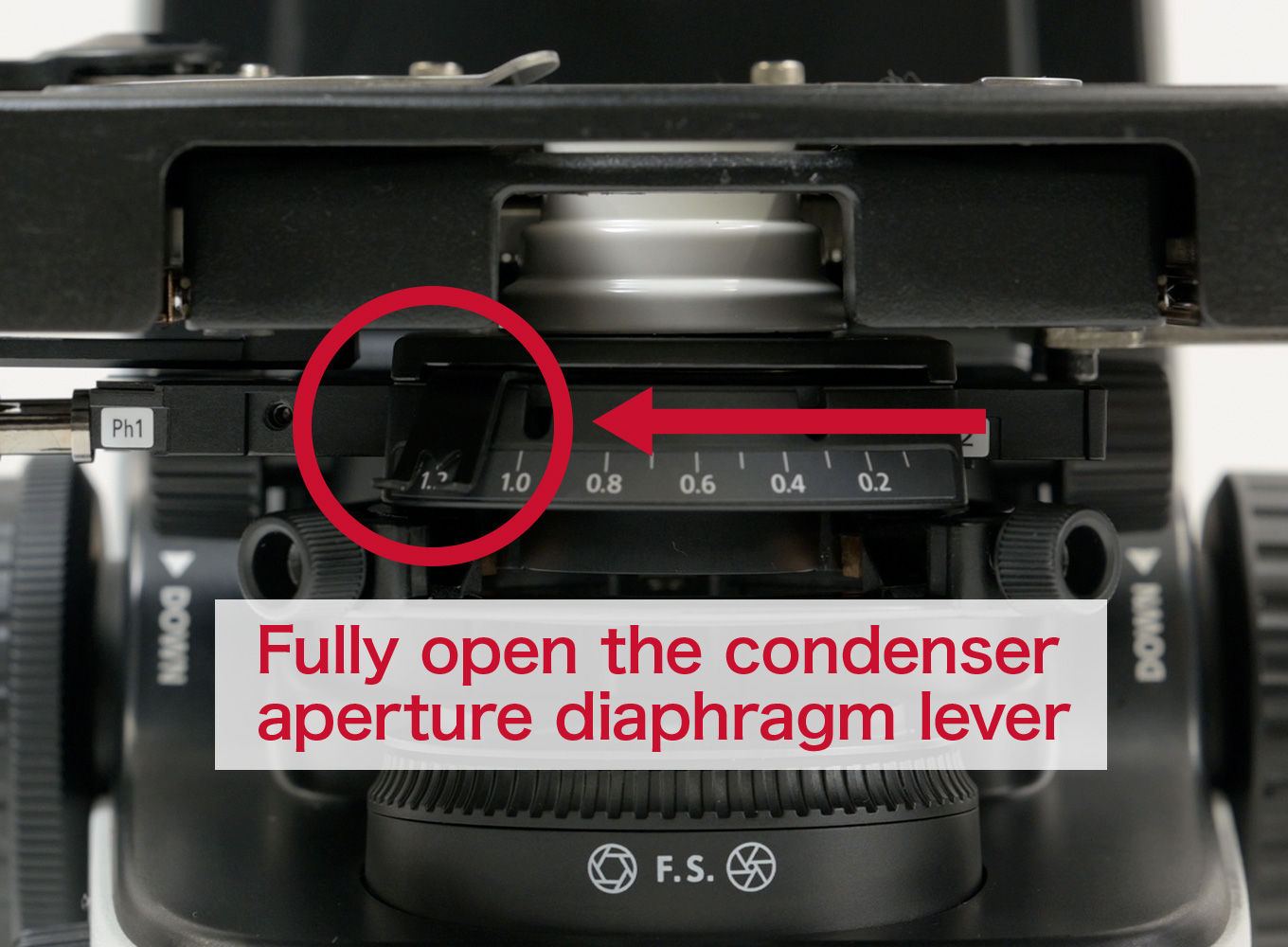

Move the condenser aperture diaphragm lever to the furthest left and fully open the aperture diaphragm.

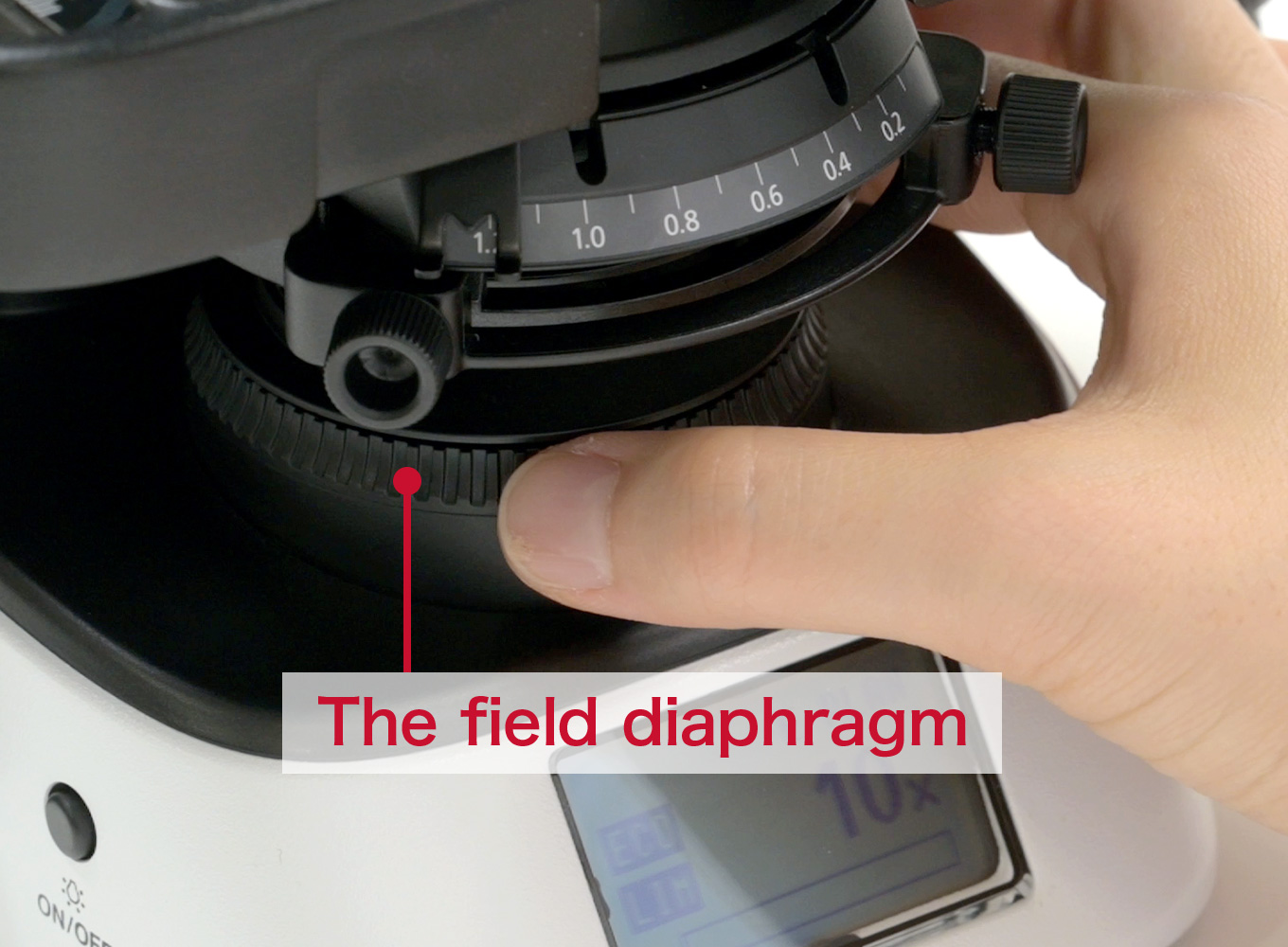

Rotate the field diaphragm clockwise, and make adjustments.

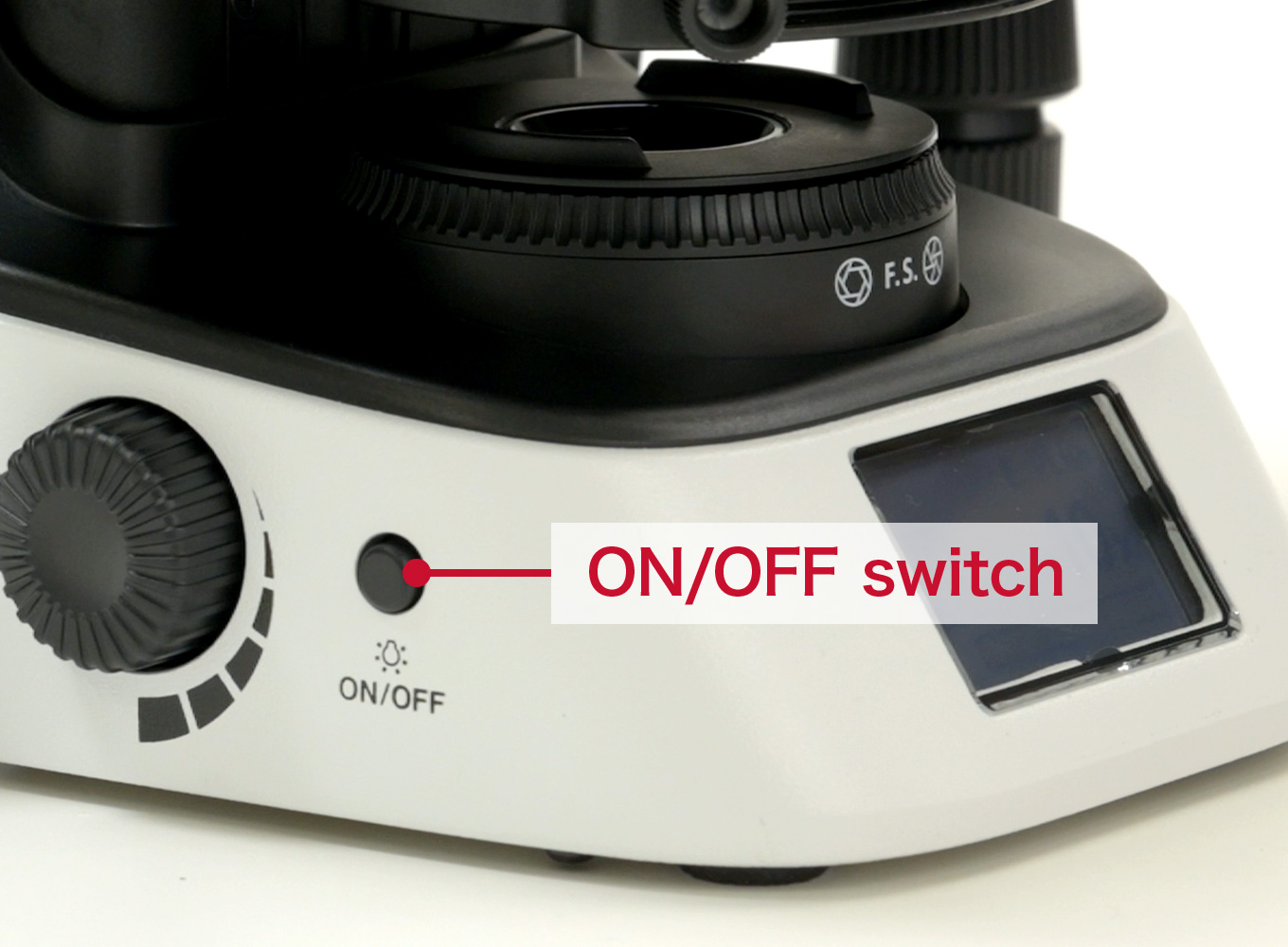

Press the light ON/OFF switch to turn on the lamp.

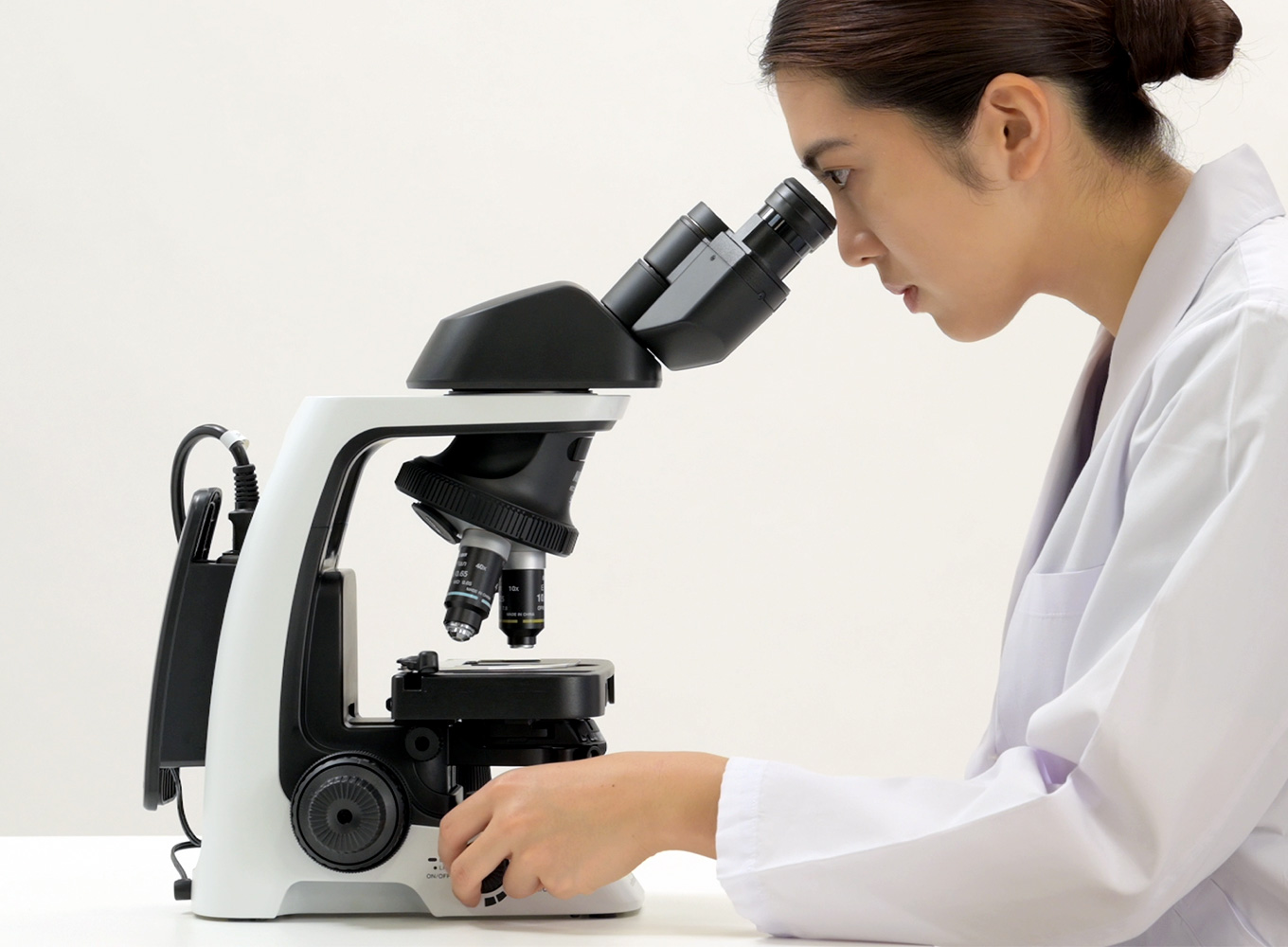

Look into the eyepiece and turn the light intensity knob to adjust the brightness of the field of view.
