CFI Plan Apochromat/Apochromat Lambda S Series

Microscope objectives optimized for live cell and confocal imaging.

These high-numerical-aperture (NA) objectives provide chromatic aberration correction over wavelengths ranging from violet to infrared and are ideal for multicolor confocal imaging. The transmittance of these lenses is enhanced over a wide wavelength range by utilizing Nano Crystal Coat technology. Plan Apochromat objectives also provide superior image flatness.

Descargar Objectives Brochure (8.56MB)


Specifications

Model Dimensions Transmittance NA W.D.
(mm)
Cover glass thickness Correction ring Observation

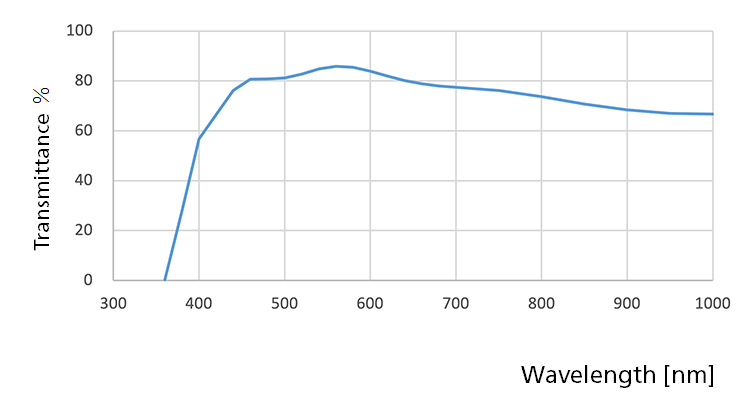

CFI Apochromat LWD Lambda S 20XC WI Diagram Graph 0.95 0.95 (0.99-0.90) 0.11-0.23 BF, DF (Oil), DIC, POL, FL (Visible light, NIR)
CFI Apochromat Lambda S 40XC WI Diagram Graph 1.25 0.18 (0.20-0.16) 0.15-0.19 BF, DIC, PH**, POL, FL (Visible light, UV)

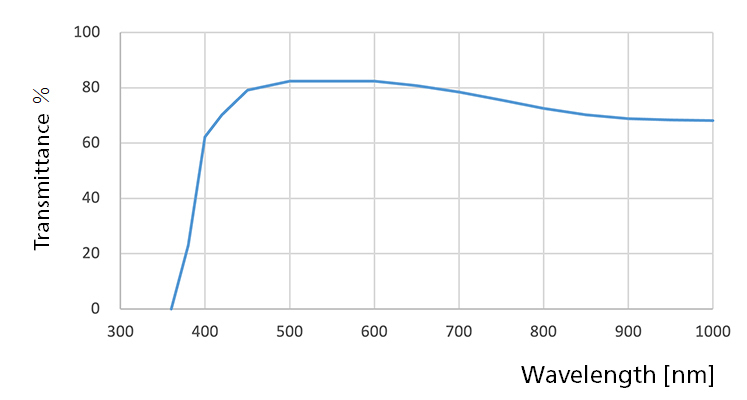

CFI Apochromat LWD Lambda S 40XC WI Diagram Graph 1.15 0.60 (0.61-0.59) 0.15-0.19 BF, DF (Oil), DIC, PH**, POL, FL (Visible light, UV)
CFI Plan Apochromat IR 60XC WI Diagram Graph 1.27 0.17 (0.18-0.16) 0.15-0.19 BF, DIC, PH**, POL, FL (visible light, UV, NIR)

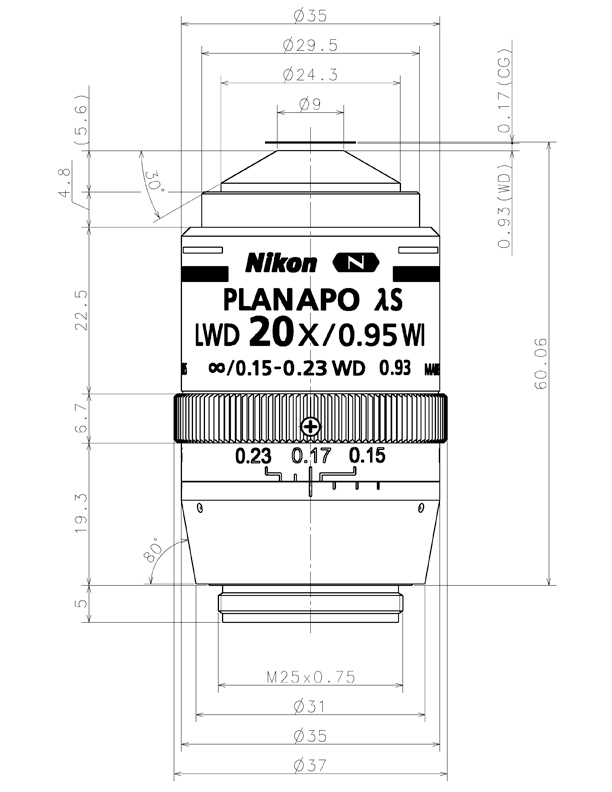

CFI Plan Apochromat LWD Lambda S 20XC WI Diagram Graph 0.95 0.93 0.11-0.23

BF, DF (Oil), DIC, POL, FL (Visible light, NIR)

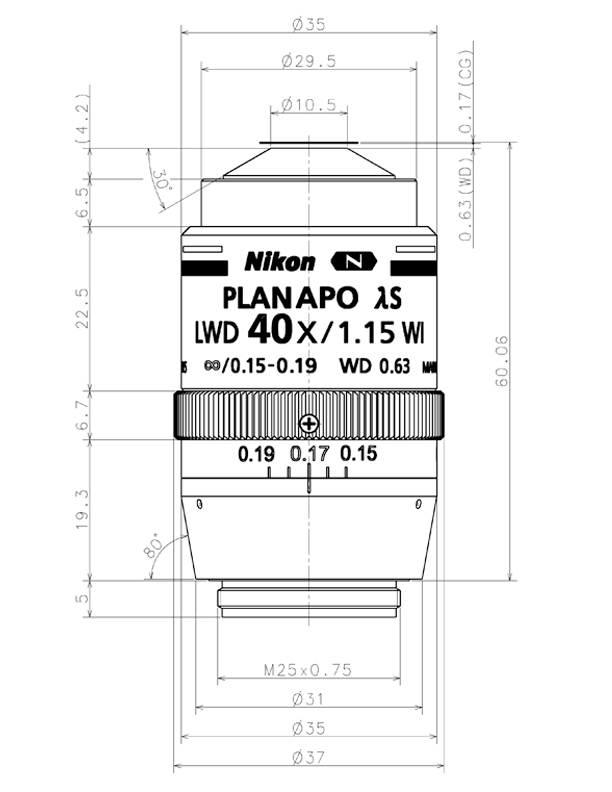

CFI Plan Apochromat LWD Lambda S 40XC WI Diagram Graph 1.15 0.63 0.15-0.19

BF, DF (Oil), DIC, PH**, POL, FL (Visible light, UV)

BF: Brightfield
DF: Darkfield
PH: Phase contrast
POL: Simple polarizing
FL: Fluorescence

*Possible but not recommended

**External phase contrast observation is possible with Eclipse Ti2-E
