Cell Observation Device

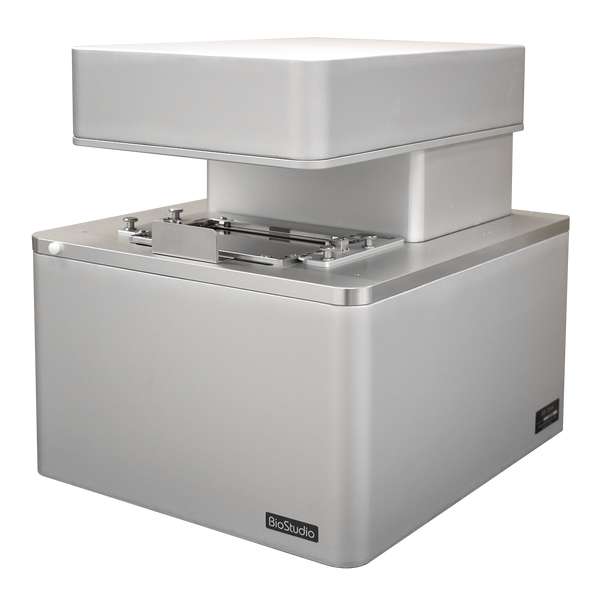

The BioStudio-T offers a unique imaging platform with a stationary sample surface and moving objective lens.  This configuration allows observation of mechanically sensitive samples, such as stem cells, with minimal perturbation.  The fixed-stage, scanning lens system also provides a superior solution for long-term time lapse imaging and large image acquisition (tiling).  Furthermore, the unique sample holder enables users to remove the sample vessel for media exchange during imaging routines without losing track of sample position.

The Biostudio T was designed specifically for research applications in the field of regenerative medicine and stem cell biology and for use in cell manufacturing facilities.

  • Compatible with a variety of sterilization techniques:  The BioStudio-T features an exceptionally waterproof and chemical-resistant design. This easy-to-clean microscope may be sterilized using hydrogen peroxide gas and/or UV sterilization methods. The compact footprint allows for installation of the BioStudio-T in various isolators, incubators, and biosafety cabinets.
  • Unparalleled flexibility in large image acquisition:  Compatible with a variety of objective lenses (phase contrast), multi-well plates and other culture vessels.
  • Cell-friendly:  The microscope stage is completely stationary during image acquisition, eliminating unwanted mechanical disturbances to the sample.  Internal optics move to acquire images in different XY and Z positions.  A cell-friendly red LED is used for sample illumination, and only turns on during image acquisition.
  • Simple interface:  Observe results from a personal computer with a cable connection to the main body and control box.
  • Suggested applications in stem cell biology:  Observation of cell differentiation, cell division, colony formation, infiltration of cancer cells, scratch assays, and more.

Click here to find out more about a new era of cell culture with image analysis techniques

Descargar Cell Solutions Brochure (1.69MB)


Características principales

High-Resolution Imaging of 2D and 3D cell cultures

Time-Lapse Imaging of iPS cells

137-hour time-lapse video (40 minutes intervals) of human iPS cells using phase contrast.

Image credit: Dr. Masahiro Kino-Oka and Dr. Mee Hae Kim, Osaka University, Graduate School of Engineering, Dept. Biotech, BioProcess Systems Engineering Lab


Imaging Three-Dimensional Cell Cultures

Time-lapse imaging of human skin fibroblast spheroid culture in 96-well U-bottom plates.

Image credit: Dr. Ryuji Kato, Nagoya University, Graduate School of Pharmaceutical Sciences, Department of Cell & Molecular Bioengineering


Easily Tile Images to Capture Whole Wells


In-Line, Non-Destructive, Label-Free Analysis

Label-Free Stem Cell Colony Tracking

Advanced auto-focusing system automatically finds and identifies colonies and ignores floating debris. Powerful registration algorithms keep track of individual colonies even after merging. Quantitative data can be easily generated, visualized and exported, using Nikon’s CL-Quant analysis software.


Identification of Differentiated Colonies Based on Morphology

Differentiated versus un-differentiated areas can be clearly identified from label-free, phase contrast images. Label-free analysis provides a powerful means for in-line analysis and quantification of colony differentiation.


Comparison of label-free analysis result with immuno-fluorescence stain shows high-degree of correlation (R2 = 0.989)

Label-Free Analysis of Phase-Contrast Image

Red=Undifferentiated
Green=Differentiated


Case Studies for Label-Free Analysis

iPSC Reprogramming

iPSC colony assessment can be carried out label-free using morphological features (e.g. compactness). Label-free, automated analysis provides a non-destructive, un-biased method for colony assessment during the iPSC reprogramming process.

Image credit: Dr. Kazutoshi Takahashi and Dr. Koji Tanabe, CiRA


Changes in size distribution of mesenchymal stem cells over time

Nikon’s CL-Quant software can easily track individual cell areas, based on label-free phase-contrast images, to monitor changes in the distribution of cell sizes over time.

A 3x3 tiled phase-contrast image was analyzed over time. Size (area) of each cell was measured by Nikon CL-Quant software. Changes in the size distribution over time is shown in the video above, demonstrating the transition from larger to smaller size over time.

Provided by: Nagoya University Graduate School of Pharmaceutical Science and Technology, Basics of Pharmaceutical Sciences, Biomedical Science
