Cleaning the oil immersion lens

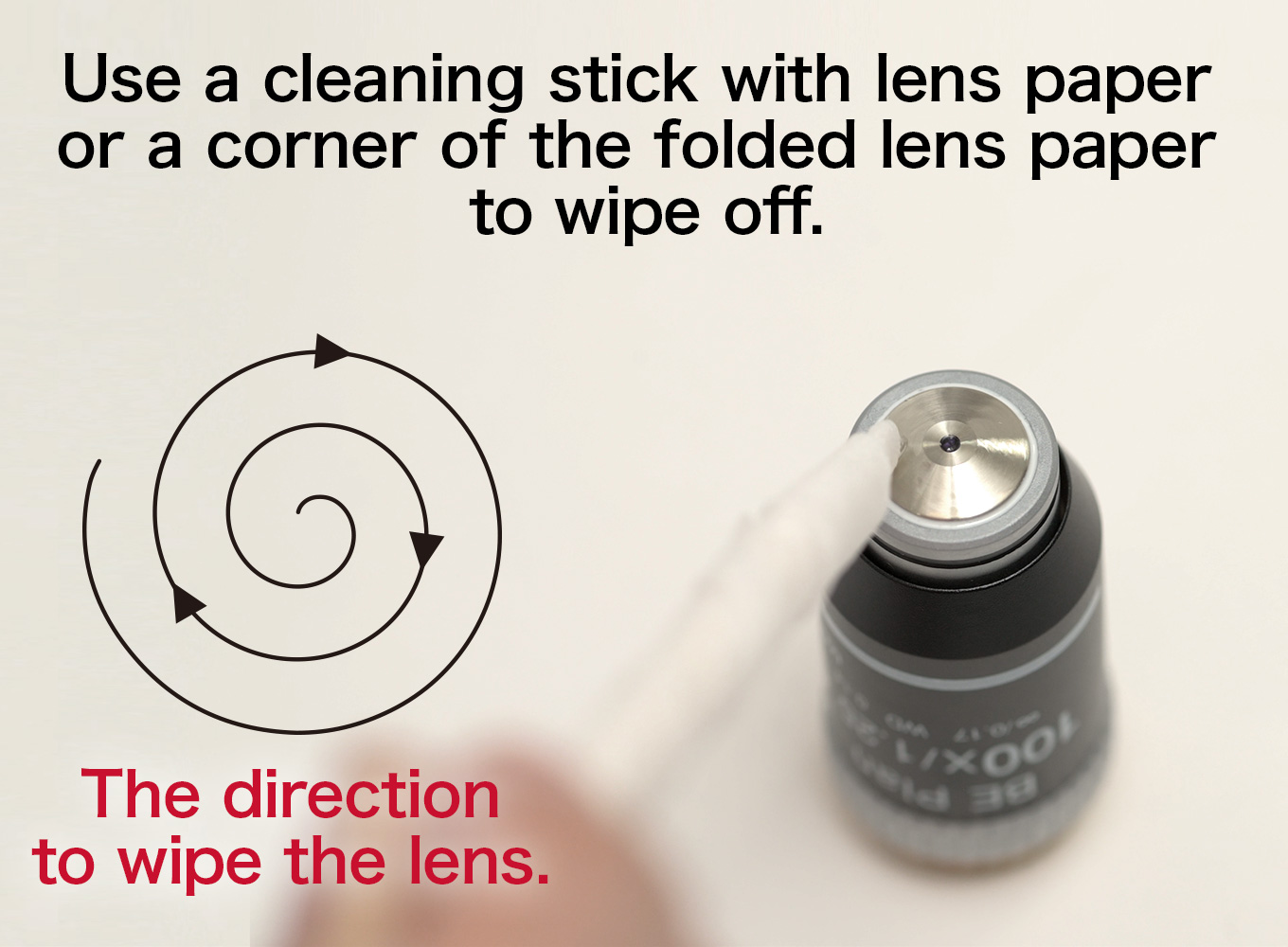

Cleaning process
After using the oil immersion lens, always be sure to wipe off the oil.
In particular, make sure the objective and the tip of the condenser have no oil residue left on them.
The oil may have gotten on other objectives when switching objectives. If any oil is on the other objectives, please clean them.
