Adjust the focus

First, adjust the focus

Step1

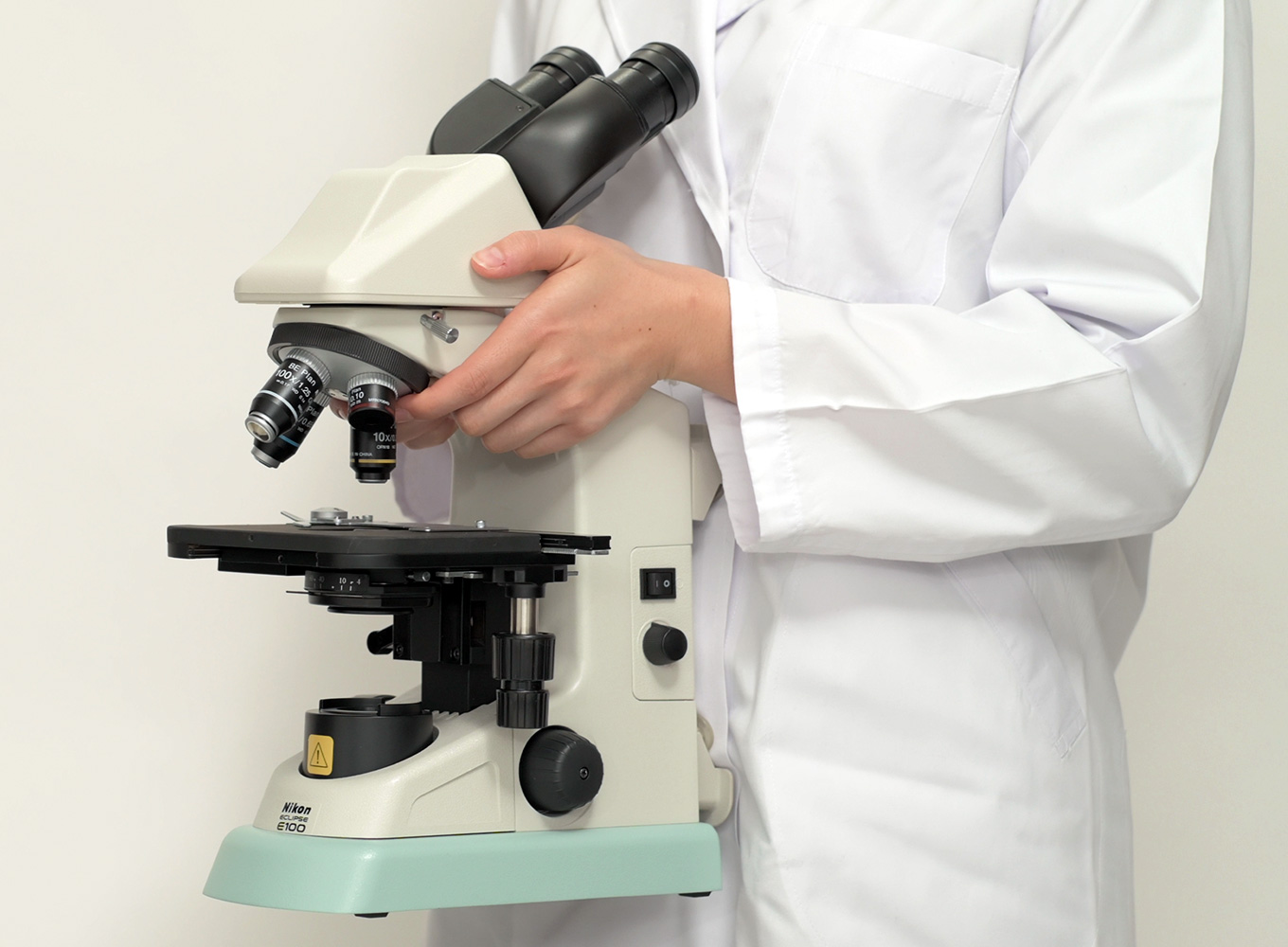

1. ❶When carrying the microscope, hold its arm securely with both hands.

Step2

1. ❷Turn on the light source.

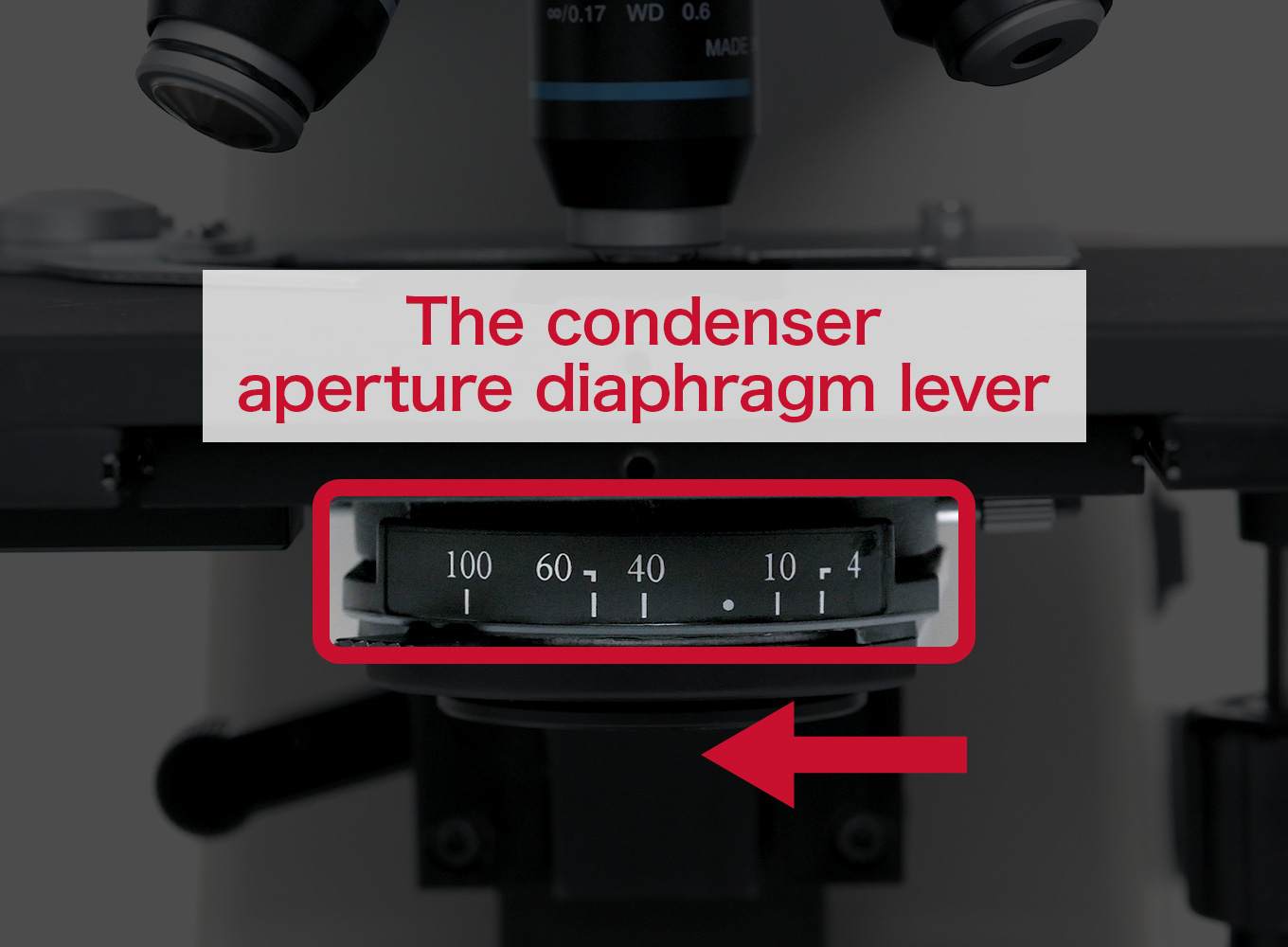

2. ❸Open the aperture of the condenser lens completely.

Step3

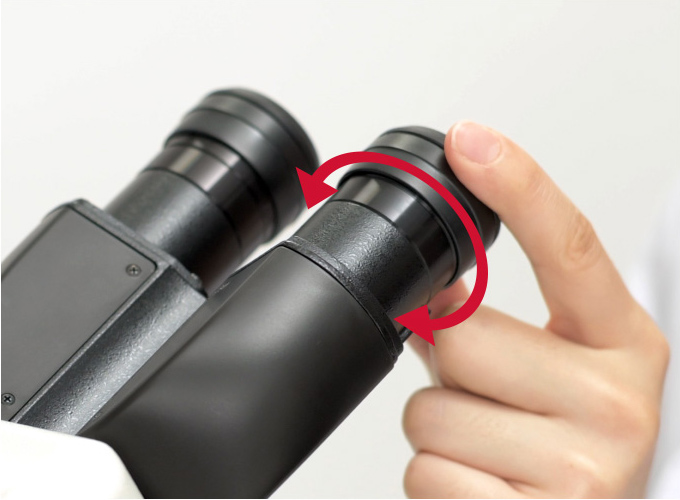

1. ❹Align the diopter ring with the reference groove.

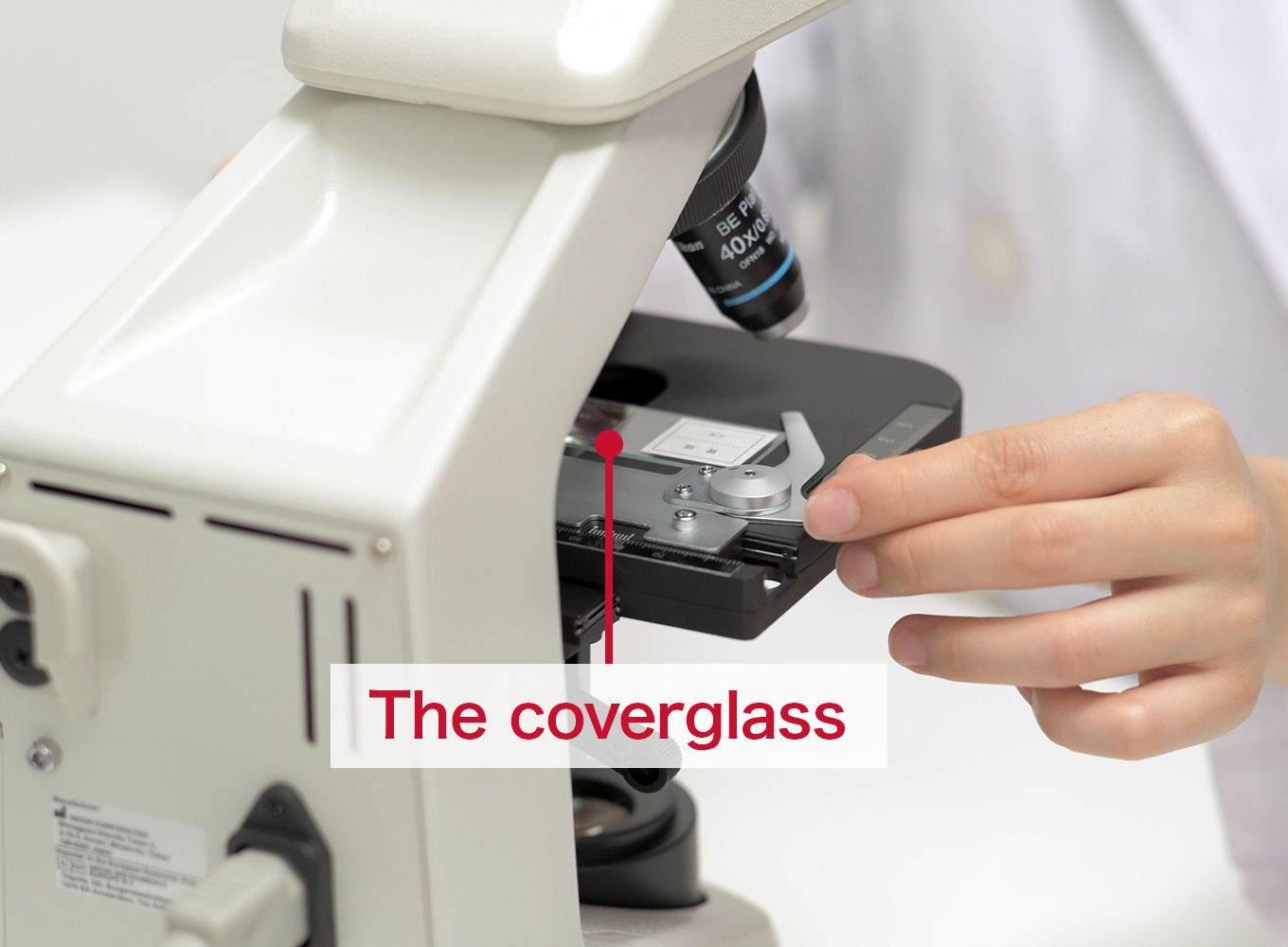

2. ❺Secure the specimen slide on the stage.

Step4

1. ❻Confirm the 10X objective lens is being used.
2. ❼Move the stage to the upper limit.
3. ❽Adjust the brightness of the light source, so there is no glare when making observations.

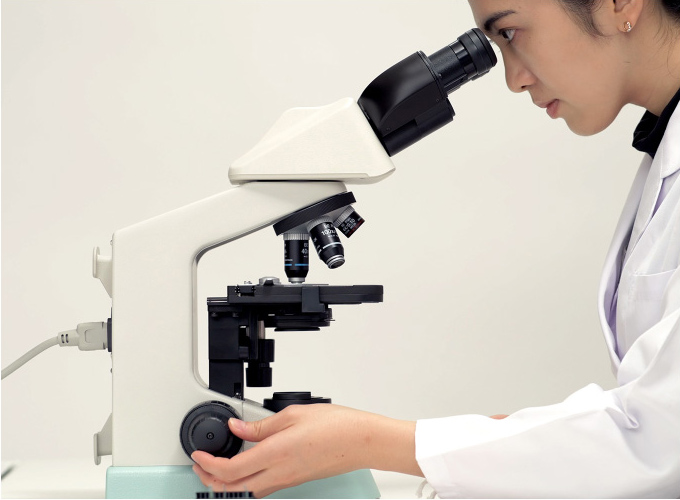

4. ❾Adjust the focus while slowly lowering the stage.

Step5

1. ❿Operate the stage moving handles to observe each part of the specimen.
